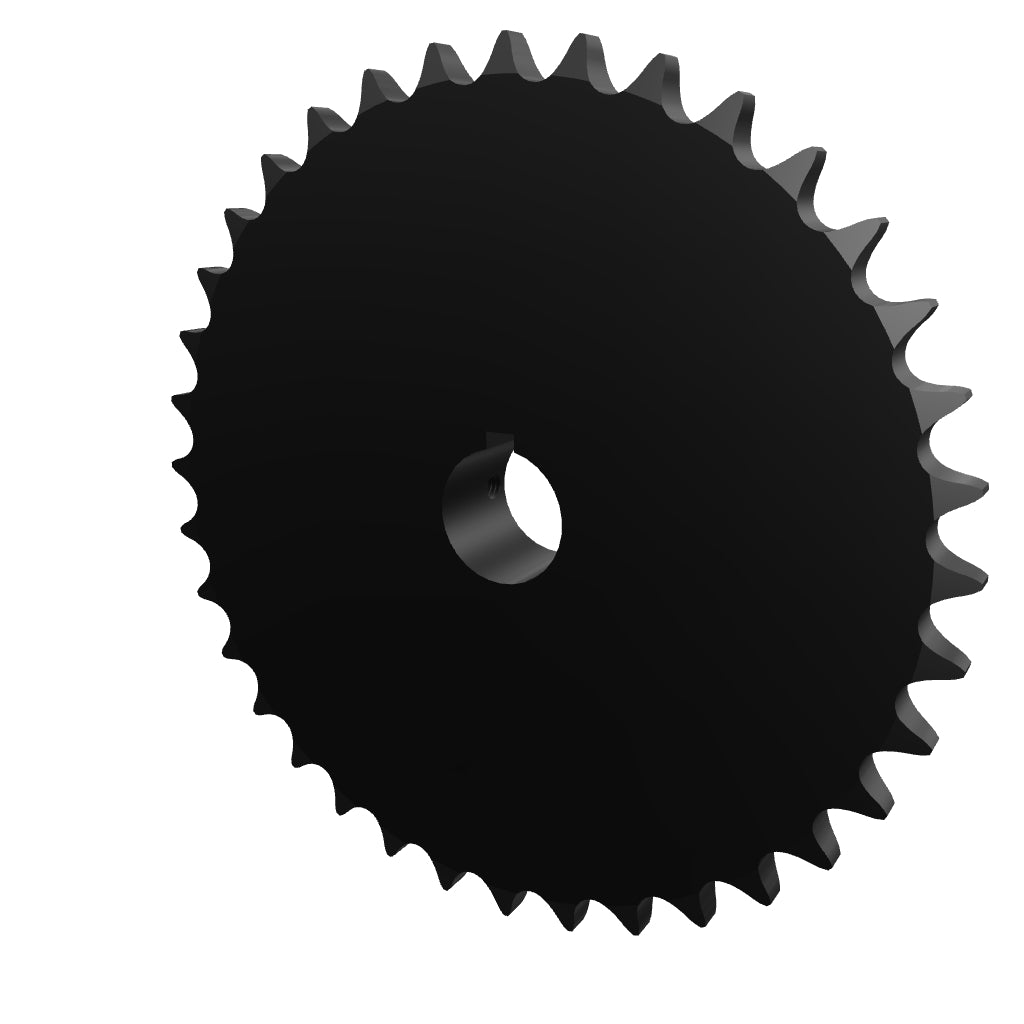

60B36-1-3/8" Finished Bore Sprocket With Keyway

Product Details : 60B36-1-3/8" Finished Bore Sprocket With Keyway

• Part No: 60B36-1-3/8
• Product Type: FB (Finish Bore)
• ANSI Chain Size: 60
• No. Of Teeth: 36
• Shaft Diameter: 1-3/8"
• Pitch: 3/4"
• Pitch Diameter: 8.605"
• Outside Diameter: 9.020"
• Tooth Thickness: 0.459"
• Hub Diameter: 4"
• Length Thru Bore: 1-1/4"
• Square Key Width: 5/16"
• Square Key Depth: 5/32"
• No. Of Set Screws: 2
• Set Screw Size: 5/16"
• Material(s): Carbon Steel
• Certifications: Manufactured using the ISO 9001 quality management system.
• Avg. Weight (lbs): 9.2

For any information about products, please contact us.

*Photos for reference purposes only.
