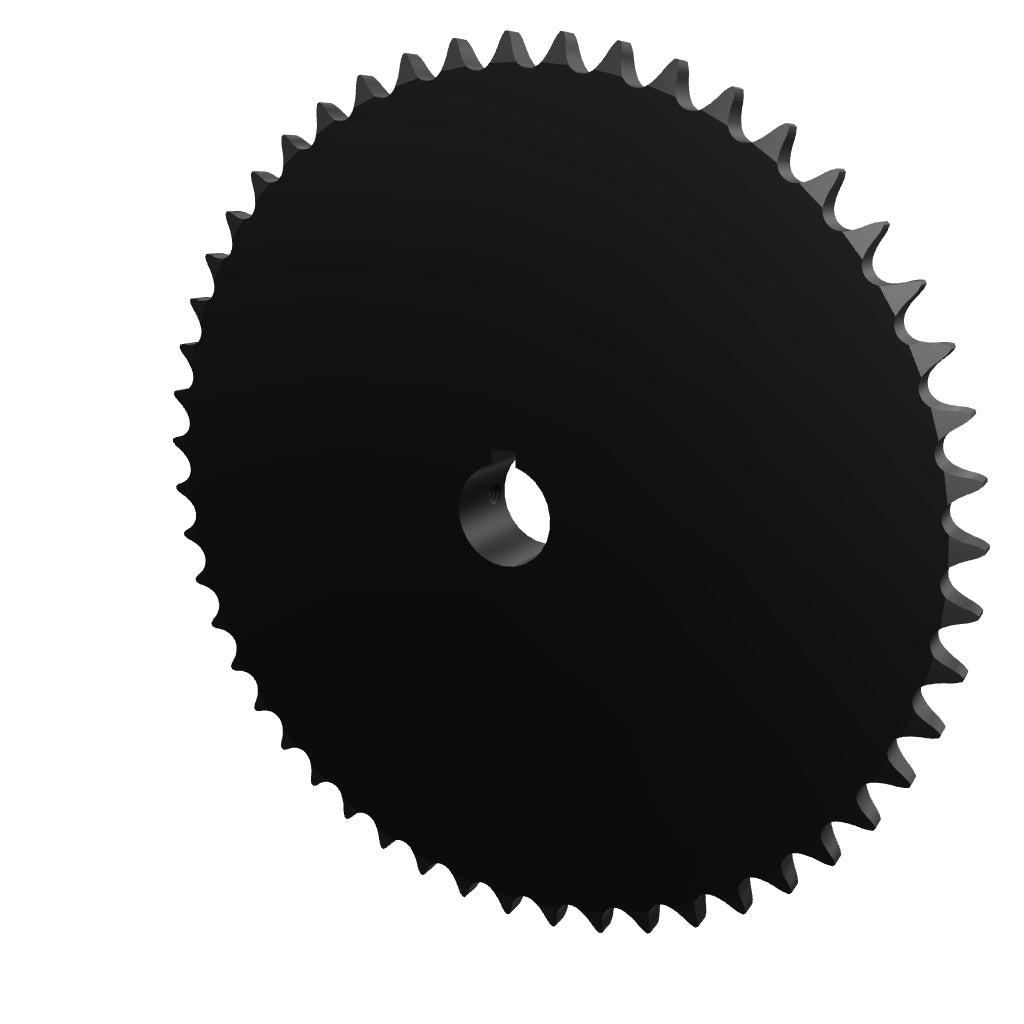

60B50-1-7/16" Finished Bore Sprocket With Keyway

Product Details : 60B50-1-7/16" Finished Bore Sprocket With Keyway

• Part No: 60B50-1-7/16
• Product Type: FB (Finish Bore)
• ANSI Chain Size: 60
• No. Of Teeth: 50
• Shaft Diameter: 1-7/16"
• Pitch: 3/4"
• Pitch Diameter: 11.944"
• Outside Diameter: 12.370"
• Tooth Thickness: 0.459"
• Hub Diameter: 4.250"
• Length Thru Bore: 1-1/4"
• Square Key Width: 3/8"
• Square Key Depth: 3/16"
• No. Of Set Screws: 2
• Set Screw Size: 3/8"
• Material(s): Carbon Steel
• Certifications: Manufactured using the ISO 9001 quality management system.
• Avg. Weight (lbs): 17.3

For any information about products, please contact us.

*Photos for reference purposes only.
