Product Details : 60JA11 Taper Bushed Sprocket JA Bushing | 60JA11H
-
Part No: 60JA11H
-
Product Type: QD (Bushing)
-
Bushing: JA
-
Chain Strand Type: Single
-
ANSI Chain Size: 60
-
No. Of Teeth: 11
-
Pitch: 3/4"
-
Pitch Diameter: 2.662"
-
Outside Diameter: 3.010"
-
Bore Max.: 1-1/4"
-
Dimension "L1": 1-1/8"
-
Dimension "L2": 1-1/8"
-
Dimension "C": 2-1/16"
-
Dimension "Y": 35/64"
-
Dimension "G": 11/64"
-
Dimension "X": 5/8"
-
Material(s): Carbon Steel
-
Hardened Teeth: Yes
-
Certifications: Manufactured using the ISO 9001 quality management system.
-
Avg. Weight (lbs): 0.46
For any information about products, please contact us.

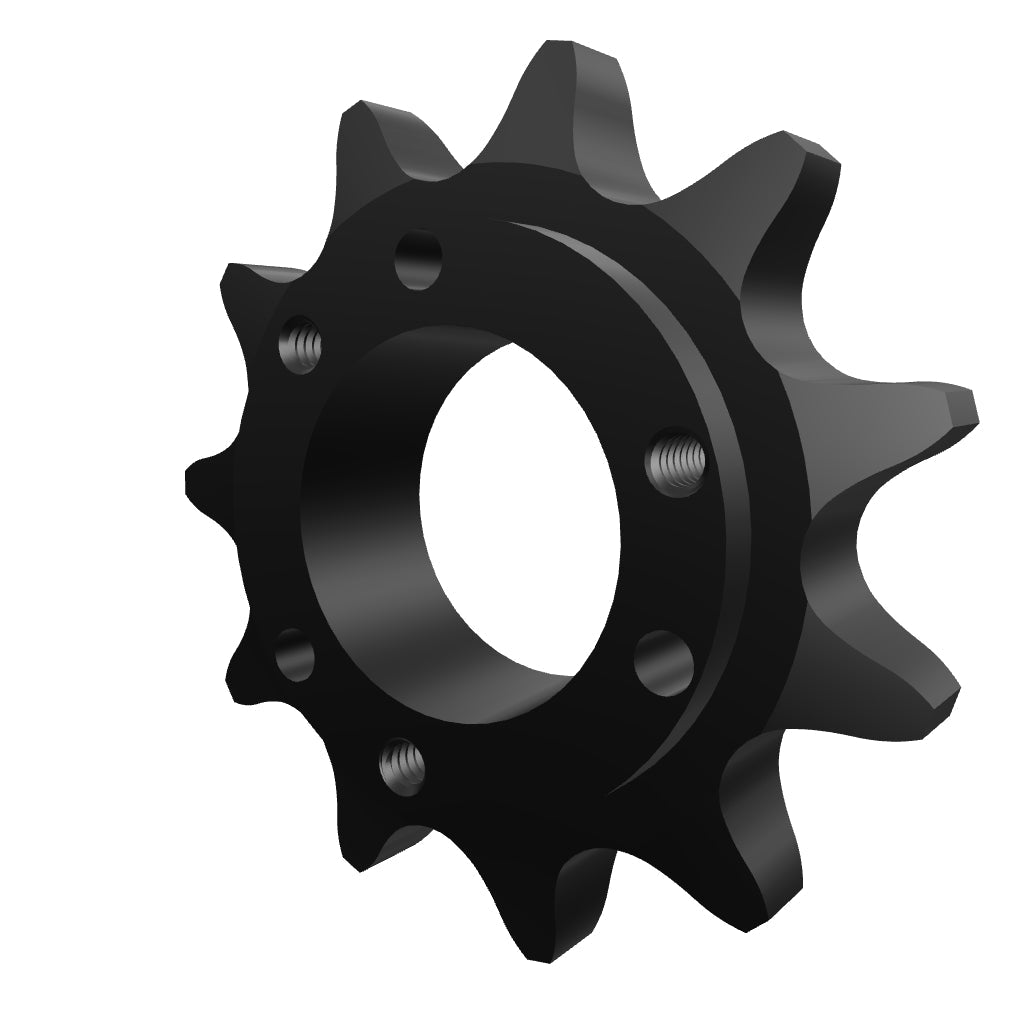

*Photos for reference purposes only.
