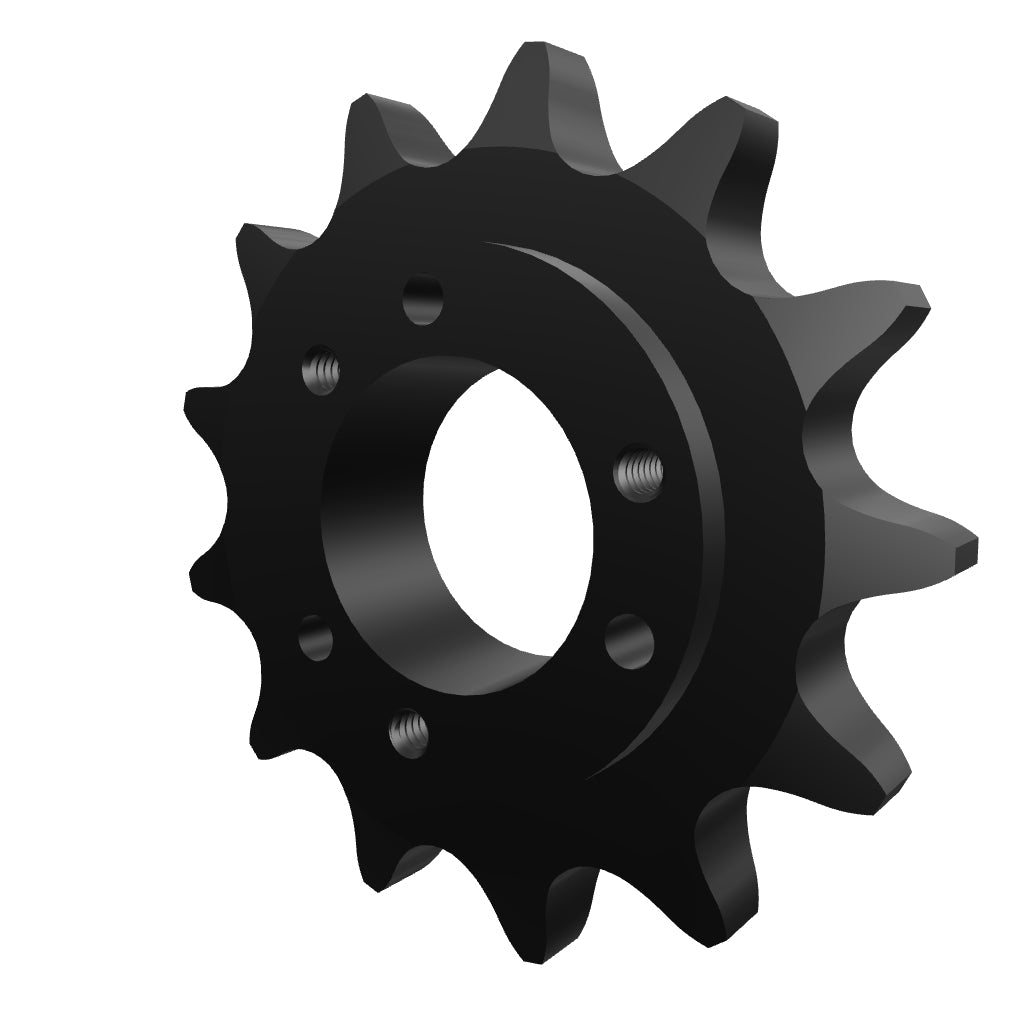

60JA13 Taper Bushed Sprocket JA Bushing | 60JA13H

• QD Bushed Sprockets PDF

Product Details : 60JA13 Taper Bushed Sprocket JA Bushing | 60JA13H

• Part No: 60JA13H
• Product Type: QD (Bushing)
• Bushing: JA
• Chain Strand Type: Single
• ANSI Chain Size: 60
• No. Of Teeth: 13
• Pitch: 3/4"
• Pitch Diameter: 3.134"
• Outside Diameter: 3.490"
• Bore Max.: 1-1/4"
• Dimension "L1": 1-1/8"
• Dimension "L2": 1-1/8"
• Dimension "C": 2-1/16"
• Dimension "Y": 35/64"
• Dimension "G": 11/64"
• Dimension "X": 5/8"
• Material(s): Carbon Steel
• Hardened Teeth: Yes
• Certifications: Manufactured using the ISO 9001 quality management system.
• Avg. Weight (lbs): 0.76

For any information about products, please contact us.

*Photos for reference purposes only.
