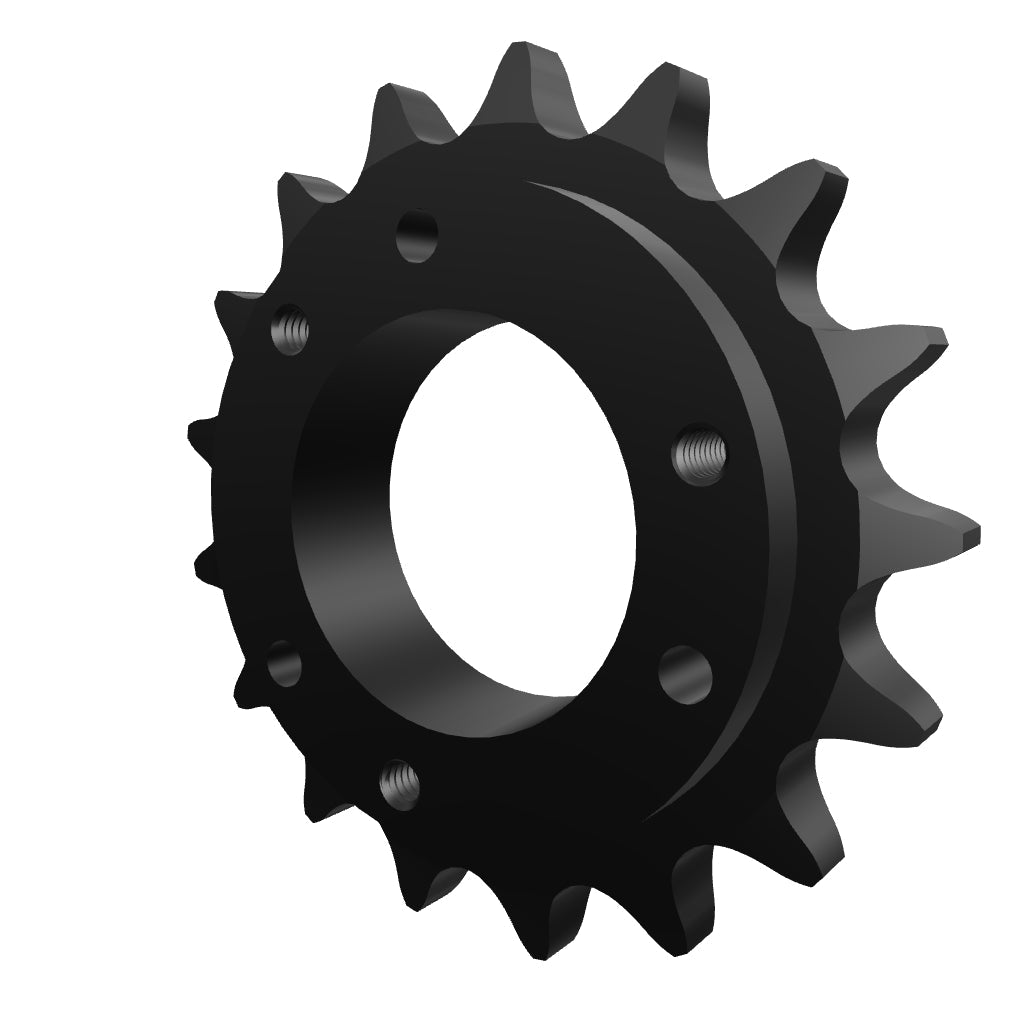

Product Details : 60SDS17 Taper Bushed Sprocket SDS Bushing | 60SDS17H
-
Part No: 60SDS17H
-
Product Type: QD (Bushing)
-
Bushing: SDS
-
Chain Strand Type: Single
-
ANSI Chain Size: 60
-
No. Of Teeth: 17
-
Pitch: 3/4"
-
Pitch Diameter: 4.082"
-
Outside Diameter: 4.460"
-
Bore Max.: 2"
-
Dimension "L1": 1-1/2"
-
Dimension "L2": 1-1/2"
-
Dimension "C": 3-3/16"
-
Dimension "Y": 55/64"
-
Dimension "G": 19/64"
-
Dimension "X": 3/4"
-
Material(s): Carbon Steel
-
Hardened Teeth: Yes
-
Certifications: Manufactured using the ISO 9001 quality management system.
-
Avg. Weight (lbs): 1.38
For any information about products, please contact us.
*Photos for reference purposes only.
