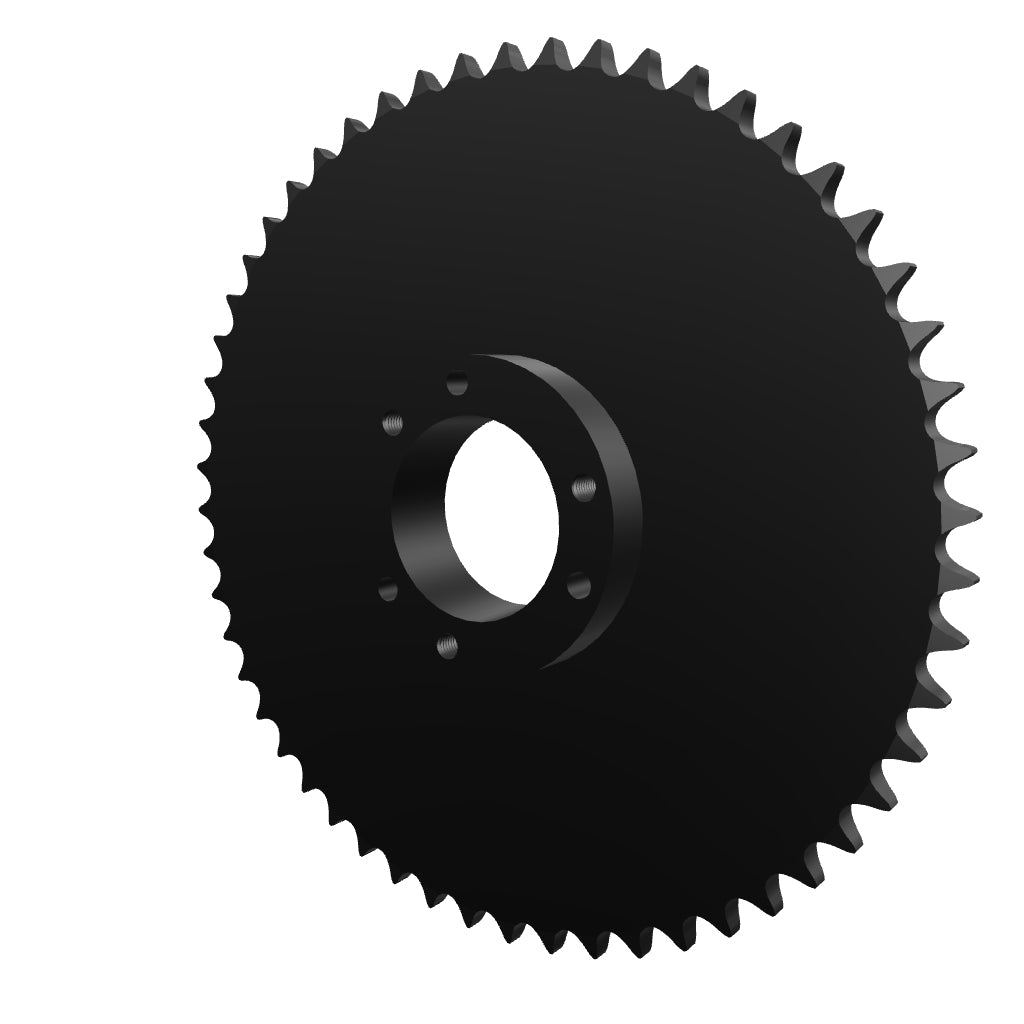

Product Details : 60SF54 Taper Bushed Sprocket SF Bushing
-
Part No: 60SF54
-
Product Type: QD (Bushing)
-
Bushing: SF
-
Chain Strand Type: Single
-
ANSI Chain Size: 60
-
No. Of Teeth: 54
-
Pitch: 3/4"
-
Pitch Diameter: 12.899"
-
Outside Diameter: 13.330"
-
Bore Max.: 2-15/16"
-
Dimension "L1": 2-1/4"
-
Dimension "L2": 2-1/4"
-
Dimension "C": 4-5/8"
-
Dimension "Y": 1-35/64"
-
Dimension "G": 51/64"
-
Dimension "X": 1-1/4"
-
Material(s): Carbon Steel
-
Certifications: Manufactured using the ISO 9001 quality management system.
-
Avg. Weight (lbs): 17.0199
For any information about products, please contact us.
*Photos for reference purposes only.
