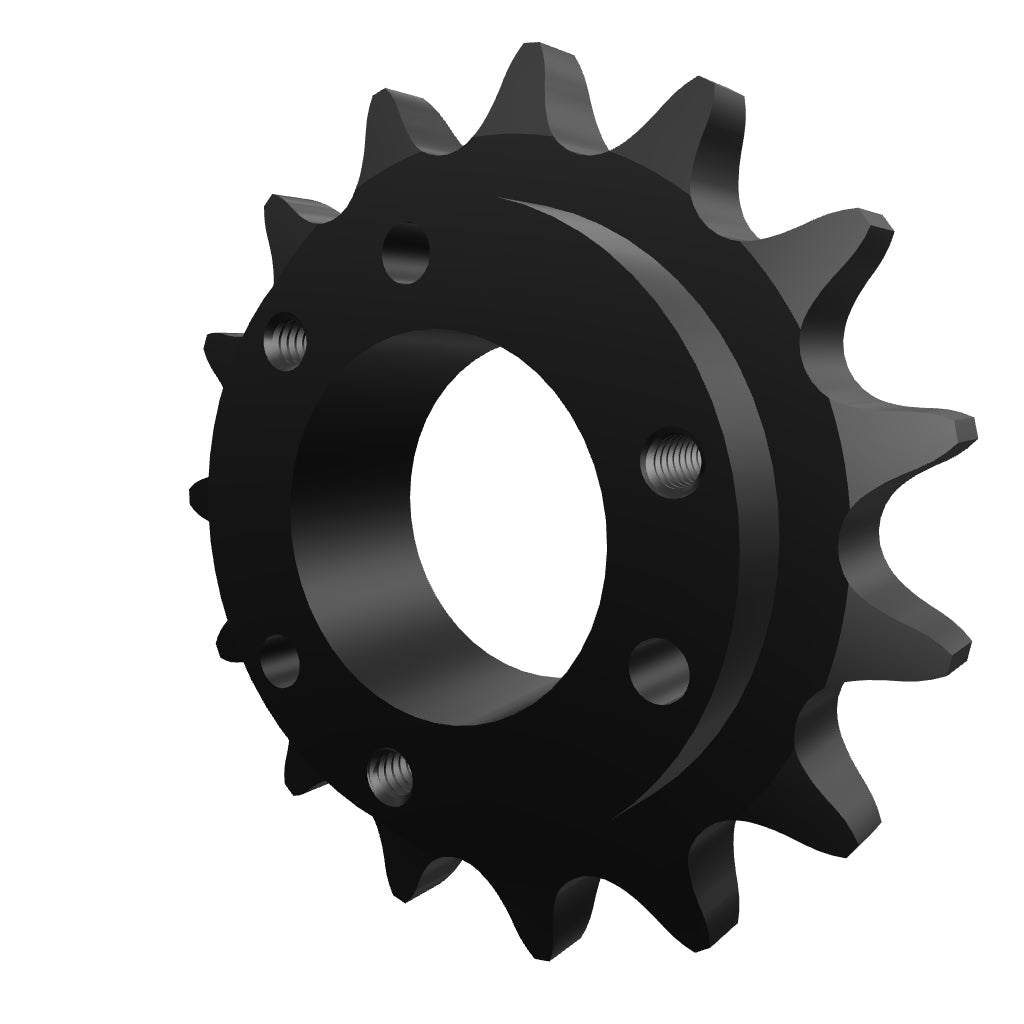

Product Details : 60SH15 Taper Bushed Sprocket SH Bushing | 60SH15H
-
Part No: 60SH15H
-
Product Type: QD (Bushing)
-
Bushing: SH
-
Chain Strand Type: Single
-
ANSI Chain Size: 60
-
No. Of Teeth: 15
-
Pitch: 3/4"
-
Pitch Diameter: 3.607"
-
Outside Diameter: 3.980"
-
Bore Max.: 1-5/8"
-
Dimension "L1": 1-7/16"
-
Dimension "L2": 1-7/16"
-
Dimension "C": 2-11/16"
-
Dimension "Y": 51/64"
-
Dimension "G": 23/64"
-
Dimension "X": 13/16"
-
Material(s): Carbon Steel
-
Hardened Teeth: Yes
-
Certifications: Manufactured using the ISO 9001 quality management system.
-
Avg. Weight (lbs): 1.08
For any information about products, please contact us.
*Photos for reference purposes only.
