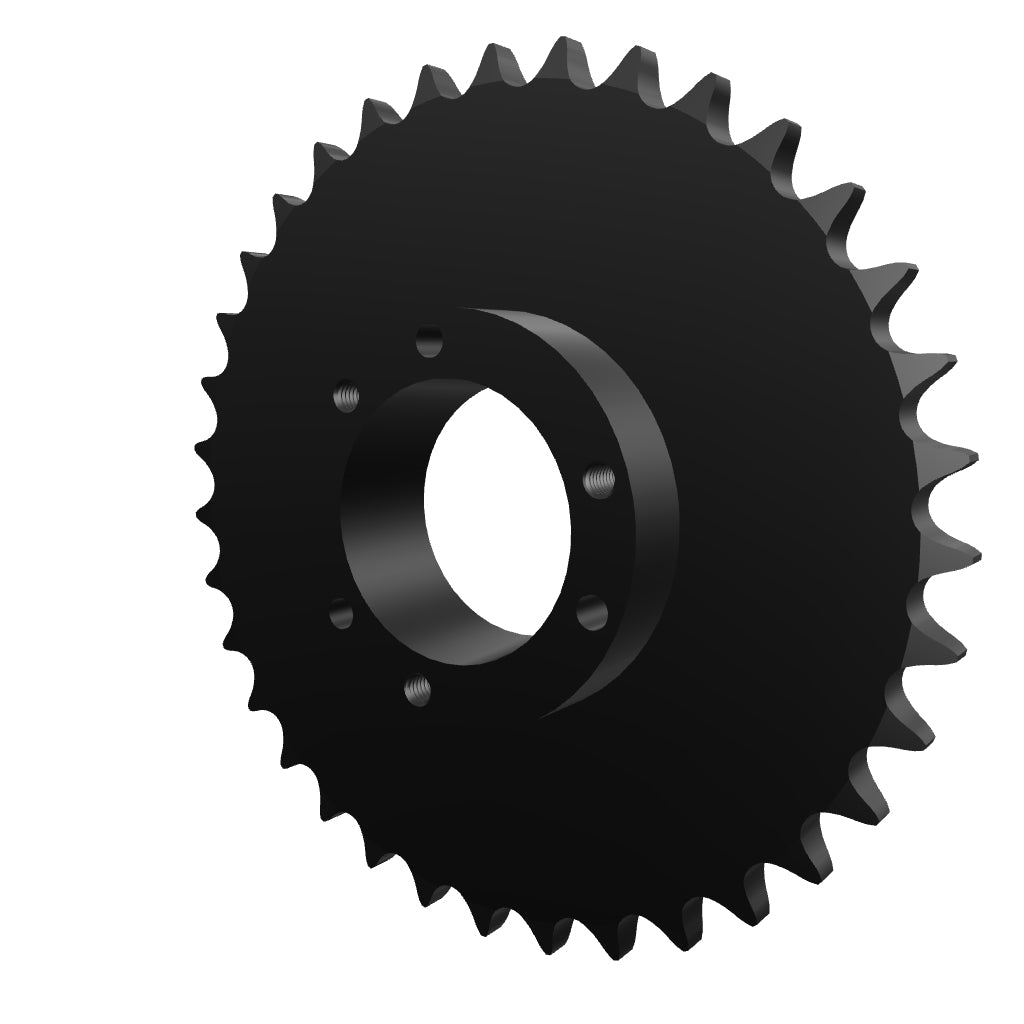

Product Details : 60SK35 Taper Bushed Sprocket SK Bushing
-
Part No: 60SK35
-
Product Type: QD (Bushing)
-
Bushing: SK
-
Chain Strand Type: Single
-
ANSI Chain Size: 60
-
No. Of Teeth: 35
-
Pitch: 3/4"
-
Pitch Diameter: 8.367"
-
Outside Diameter: 8.780"
-
Bore Max.: 2-5/8"
-
Dimension "L1": 2-1/8"
-
Dimension "L2": 2-1/8"
-
Dimension "C": 3-7/8"
-
Dimension "Y": 1-27/64"
-
Dimension "G": 51/64"
-
Dimension "X": 1-1/4"
-
Material(s): Carbon Steel
-
Certifications: Manufactured using the ISO 9001 quality management system.
-
Avg. Weight (lbs): 7.42
For any information about products, please contact us.
*Photos for reference purposes only.
