80A15 Double Strand Sprocket With Stock Bore | DS80A15H

• Double Strand Sprockets PDF

Product Details : 80A15 Double Strand Sprocket With Stock Bore | DS80A15H

• Part No: DS80A15H
• Product Type: A (Stock Bore)
• Sprocket Type: Type A-Plate Sprocket
• Chain Strand Type: Double Single
• Bore: Stock Bore
• ANSI Chain Size: 80
• No. Of Teeth: 15
• Pitch: 1"
• Outside Diameter: 5.300"
• Bore Stock: 1"
• Bore Max.: 2-3/8"

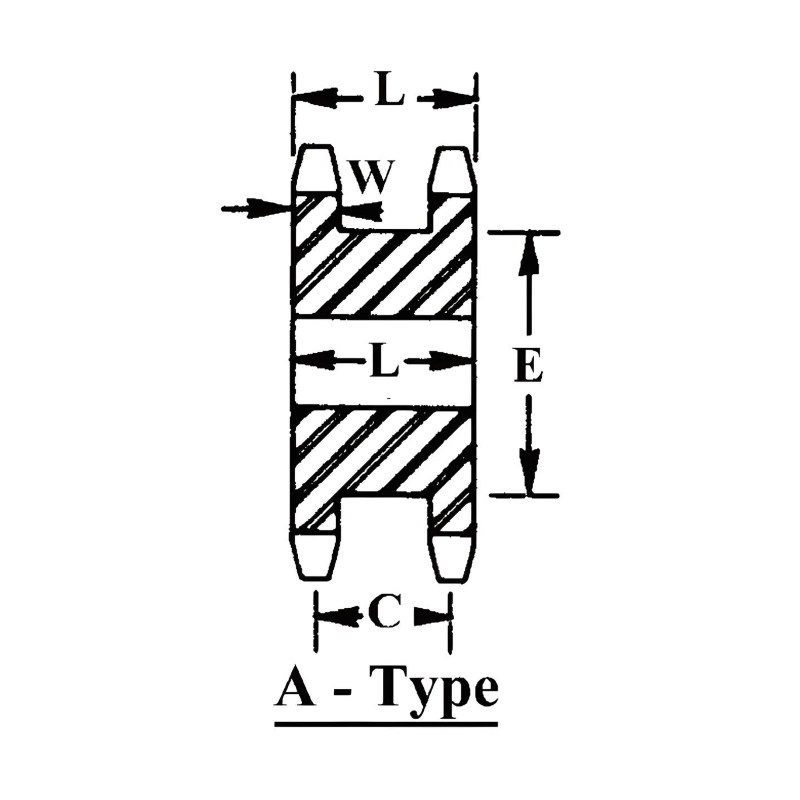

• Dimension "L": 2-3/16"
• Dimension "C": 1-5/8"
• Dimension "E": 3-13/16"
• Material(s): Carbon Steel
• Hardened Teeth: Yes
• Certifications: Manufactured using the ISO 9001 quality management system.
• Avg. Weight (lbs): 9.1

For any information about products, please contact us.

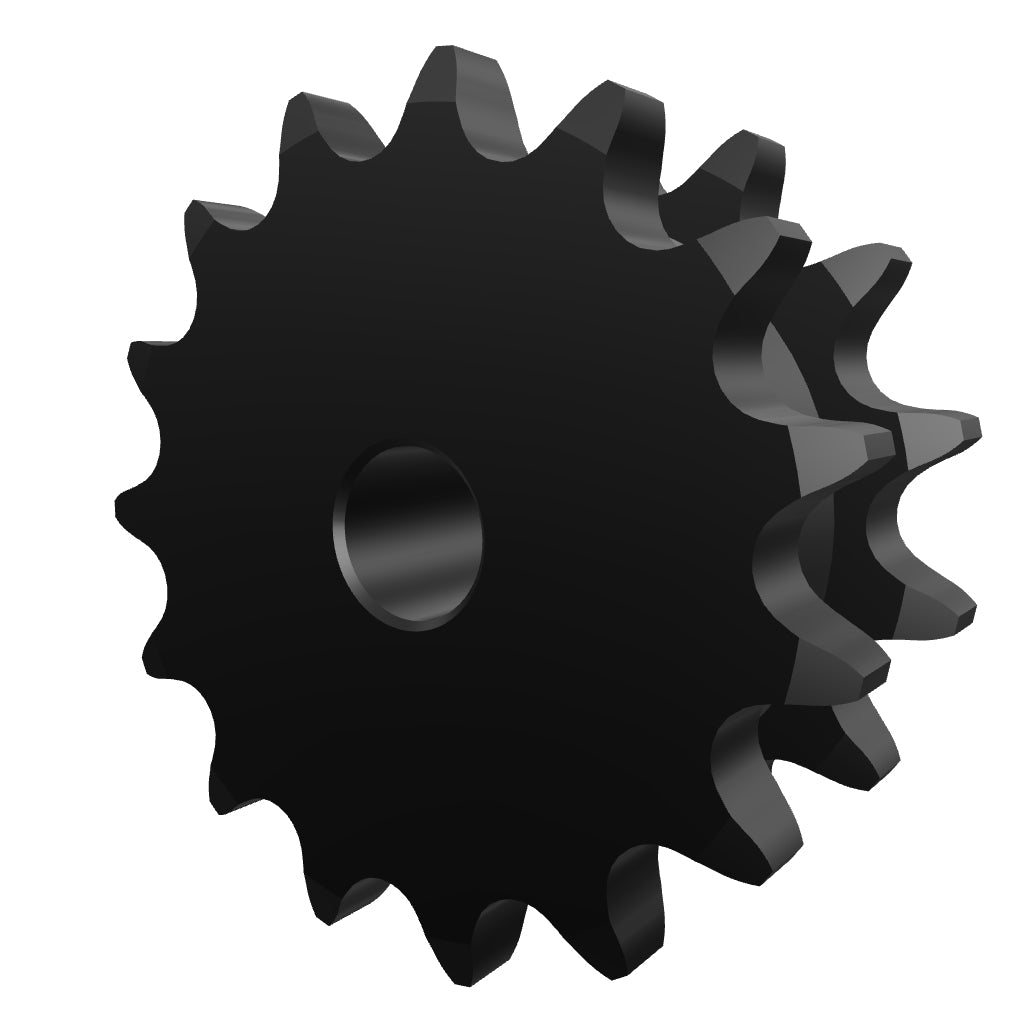

*Photos for reference purposes only.
