Description

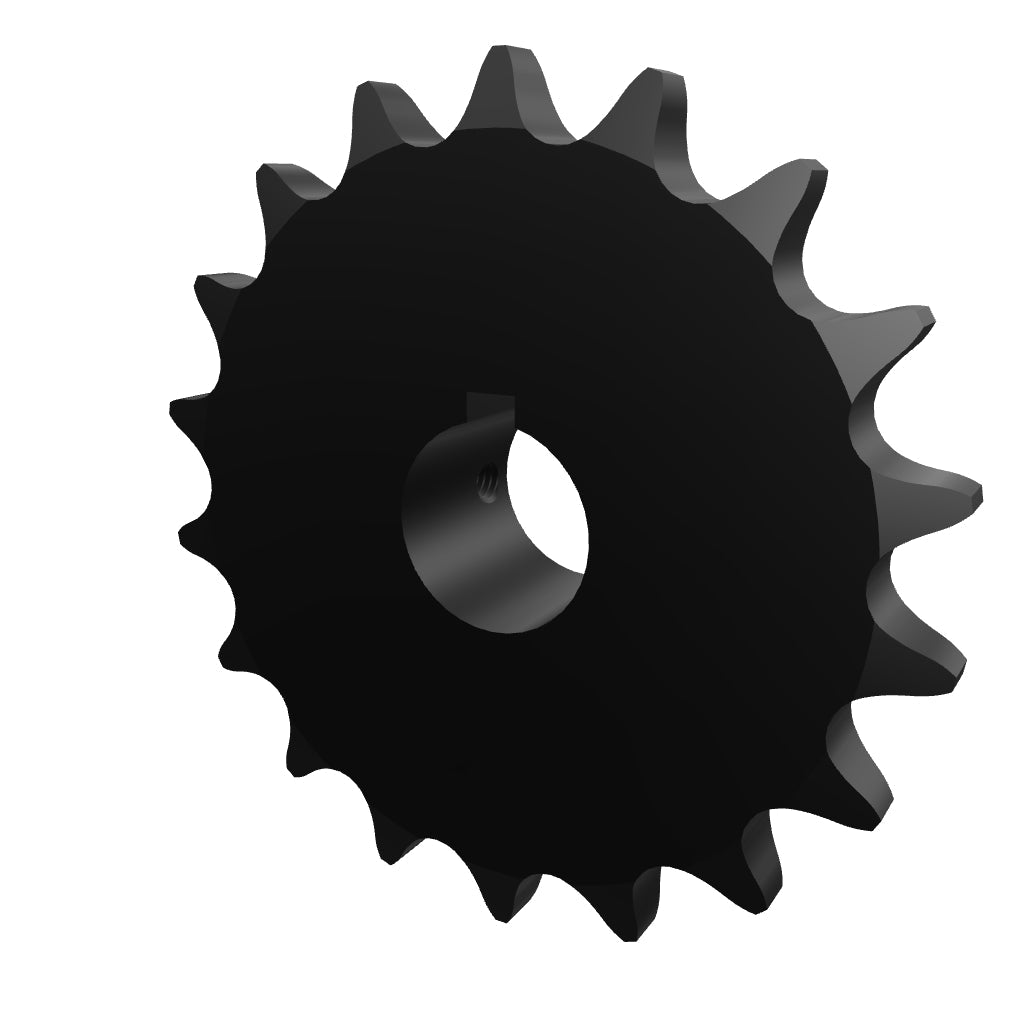

Product Details : 80B18-1-1/2" Finished Bore Sprocket With Keyway | 80B18H-1-1/2
- Part No: 80B18H-1-1/2
- Product Type: FB (Finish Bore)
- ANSI Chain Size: 80
- No. Of Teeth: 18
- Shaft Diameter: 1-1/2"
- Pitch: 1"
- Pitch Diameter: 5.759"
- Outside Diameter: 6.270"
- Tooth Thickness: 0.575"
- Hub Diameter: 4.250"
- Length Thru Bore: 1-1/2"
- Square Key Width: 3/8"
- Square Key Depth: 3/16"
- No. Of Set Screws: 2
- Set Screw Size: 3/8"
- Material(s): Carbon Steel
- Hardened Teeth: Yes
- Certifications: Manufactured using the ISO 9001 quality management system.
- Avg. Weight (lbs): 6.5
For any information about products, please contact us.
*Photos for reference purposes only.
