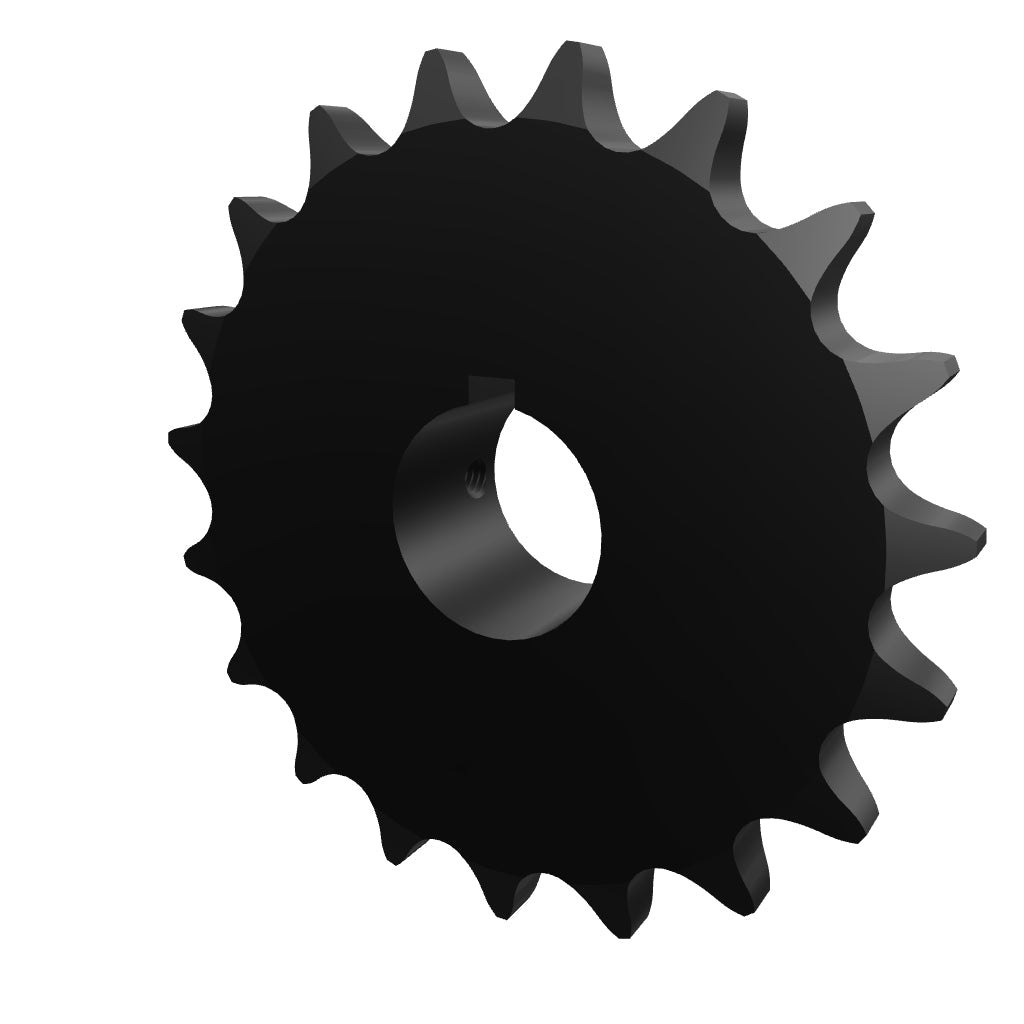

Product Details : 80B19-1-3/4" Finished Bore Sprocket With Keyway | 80B19H-1-3/4
-
Part No: 80B19H-1-3/4
-
Product Type: FB (Finish Bore)
-
ANSI Chain Size: 80
-
No. Of Teeth: 19
-
Shaft Diameter: 1-3/4"
-
Pitch: 1"
-
Pitch Diameter: 6.076"
-
Outside Diameter: 6.590"
-
Tooth Thickness: 0.575"
-
Hub Diameter: 4.250"
-
Length Thru Bore: 1-1/2"
-
Square Key Width: 3/8"
-
Square Key Depth: 3/16"
-
No. Of Set Screws: 2
-
Set Screw Size: 3/8"
-
Material(s): Carbon Steel
-
Hardened Teeth: Yes
-
Certifications: Manufactured using the ISO 9001 quality management system.
-
Avg. Weight (lbs): 7
For any information about products, please contact us.
*Photos for reference purposes only.
