Description

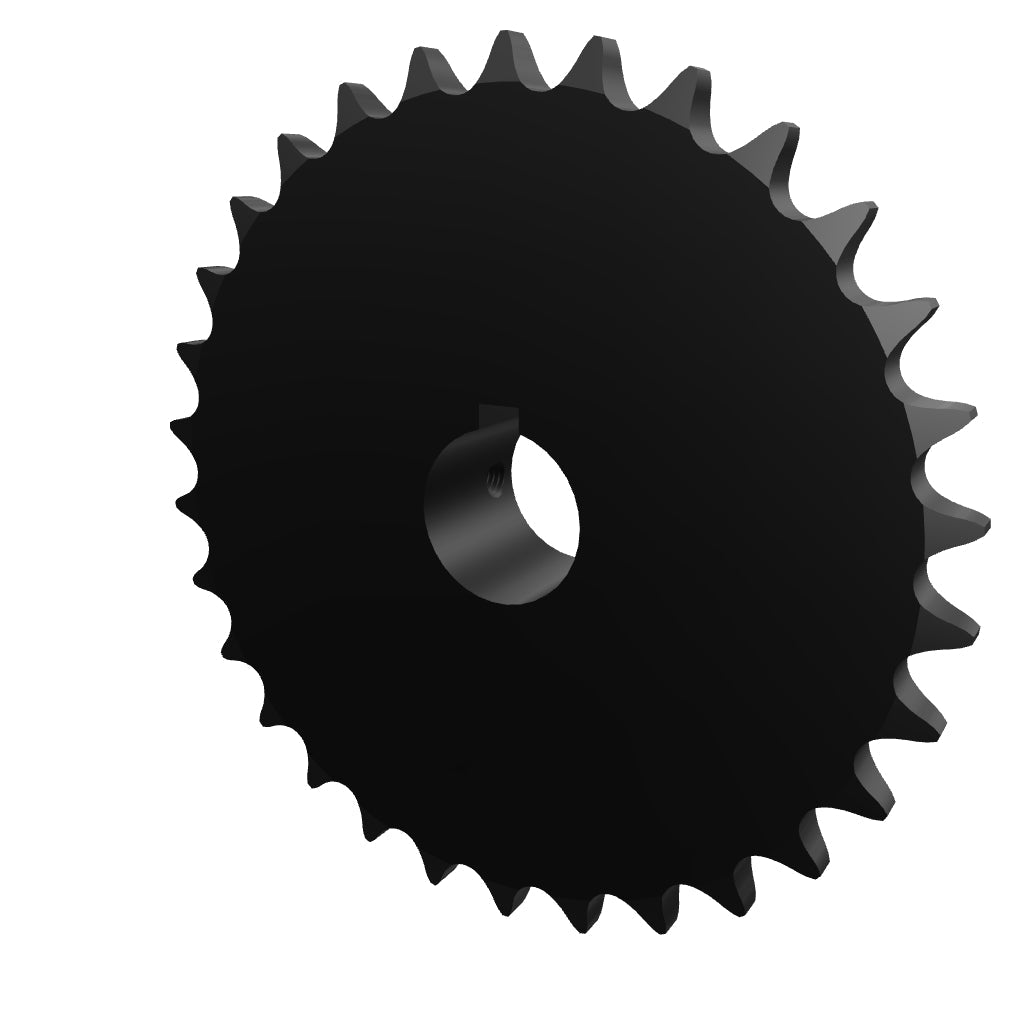

Product Details : 80B30-2" Finished Bore Sprocket With Keyway
- Part No: 80B30-2
- Product Type: FB (Finish Bore)
- ANSI Chain Size: 80
- No. Of Teeth: 30
- Shaft Diameter: 2"
- Pitch: 1"
- Pitch Diameter: 9.567"
- Outside Diameter: 10.110"
- Tooth Thickness: 0.575"
- Hub Diameter: 4.750"
- Length Thru Bore: 2"
- Square Key Width: 1/2"
- Square Key Depth: 1/4"
- No. Of Set Screws: 2
- Set Screw Size: 1/2"
- Material(s): Carbon Steel
- Certifications: Manufactured using the ISO 9001 quality management system.
- Avg. Weight (lbs): 16.7
For any information about products, please contact us.
*Photos for reference purposes only.
