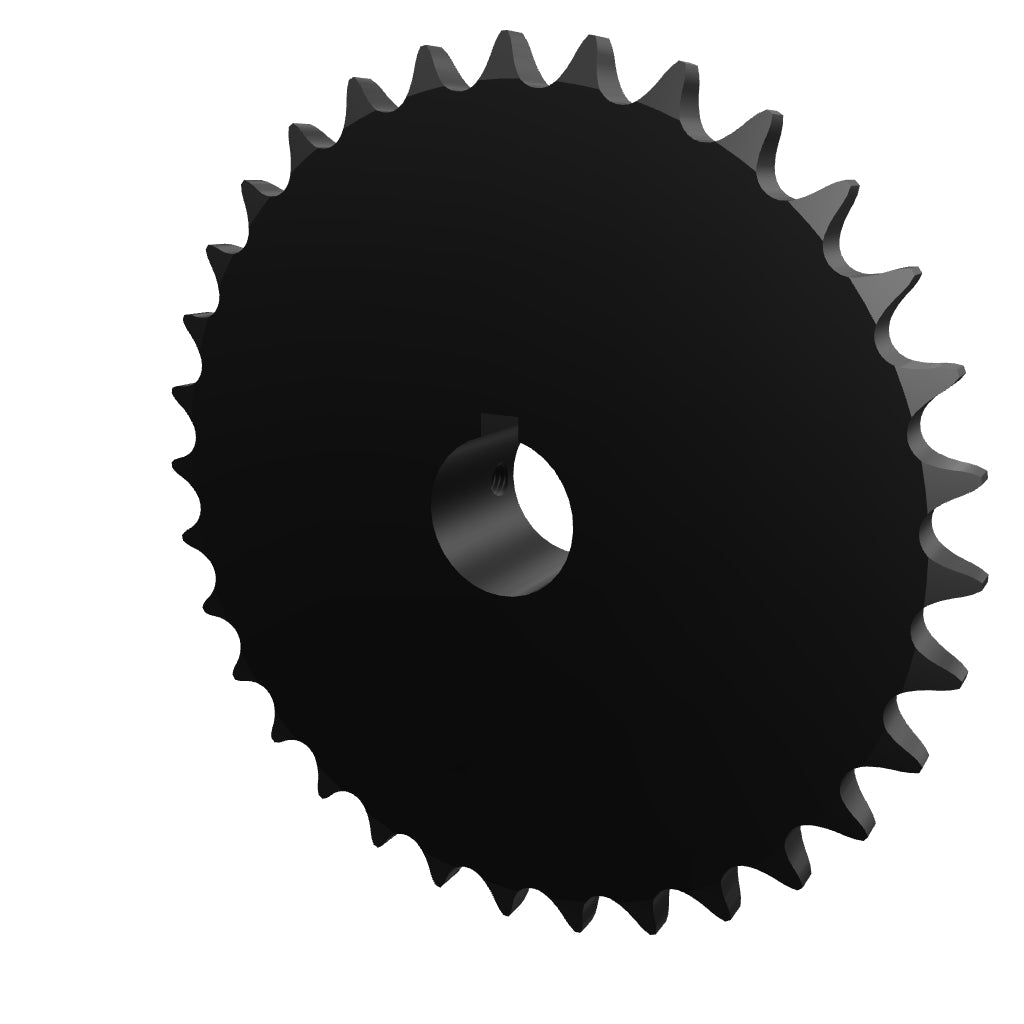

Product Details : 80B32-1-15/16" Finished Bore Sprocket With Keyway
-
Part No: 80B32-1-15/16
-
Product Type: FB (Finish Bore)
-
ANSI Chain Size: 80
-
No. Of Teeth: 32
-
Shaft Diameter: 1-15/16"
-
Pitch: 1"
-
Pitch Diameter: 10.202"
-
Outside Diameter: 10.750"
-
Tooth Thickness: 0.575"
-
Hub Diameter: 4.750"
-
Length Thru Bore: 2"
-
Square Key Width: 1/2"
-
Square Key Depth: 1/4"
-
No. Of Set Screws: 2
-
Set Screw Size: 1/2"
-
Material(s): Carbon Steel
-
Certifications: Manufactured using the ISO 9001 quality management system.
-
Avg. Weight (lbs): 18.8
For any information about products, please contact us.
*Photos for reference purposes only.
