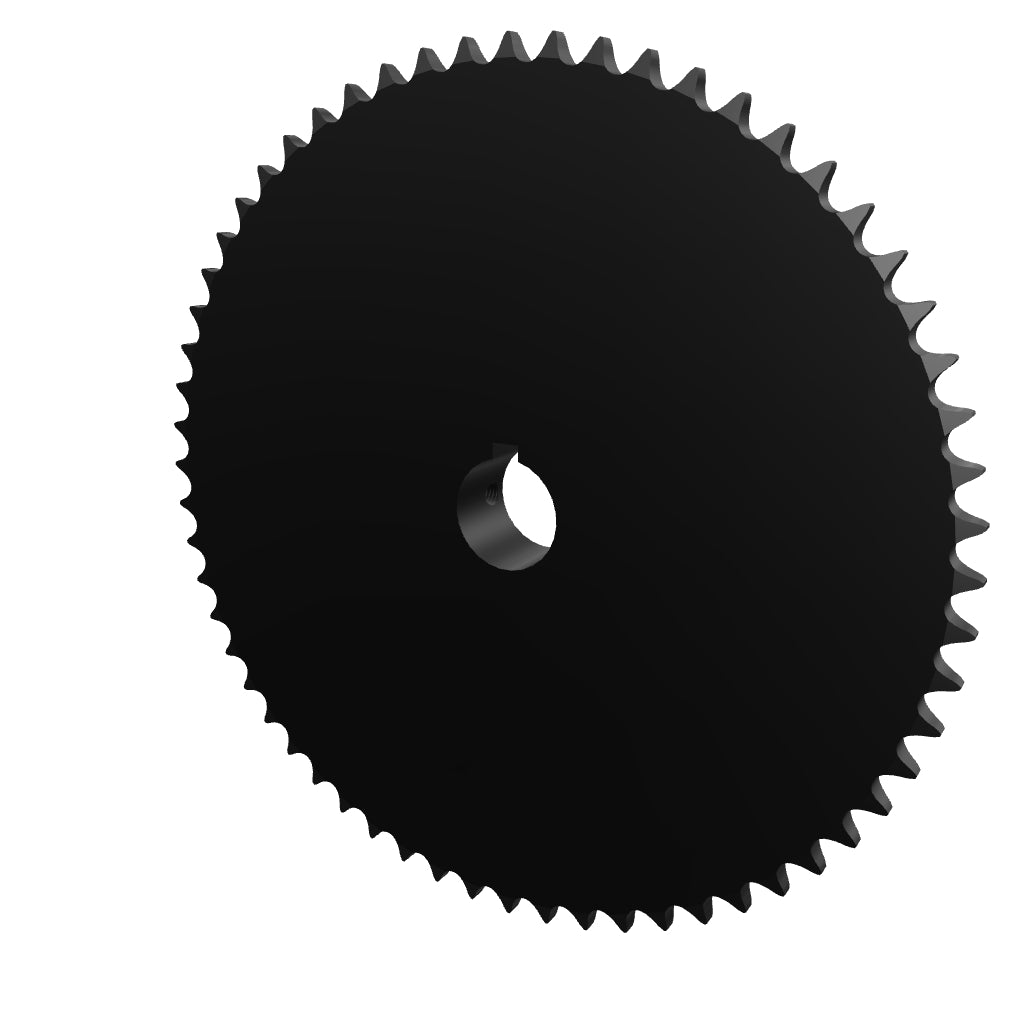

80B60-2-1/2" Finished Bore Sprocket With Keyway

Product Details : 80B60-2-1/2" Finished Bore Sprocket With Keyway

• Part No: 80B60-2-1/2
• Product Type: FB (Finish Bore)
• ANSI Chain Size: 80
• No. Of Teeth: 60
• Shaft Diameter: 2-1/2"
• Pitch: 1"
• Pitch Diameter: 19.107"
• Outside Diameter: 19.680"
• Tooth Thickness: 0.575"
• Hub Diameter: 5.250"
• Length Thru Bore: 2"
• Square Key Width: 5/8"
• Square Key Depth: 5/16"
• No. Of Set Screws: 2
• Set Screw Size: 5/8"
• Material(s): Carbon Steel
• Certifications: Manufactured using the ISO 9001 quality management system.
• Avg. Weight (lbs): 48

For any information about products, please contact us.

*Photos for reference purposes only.
