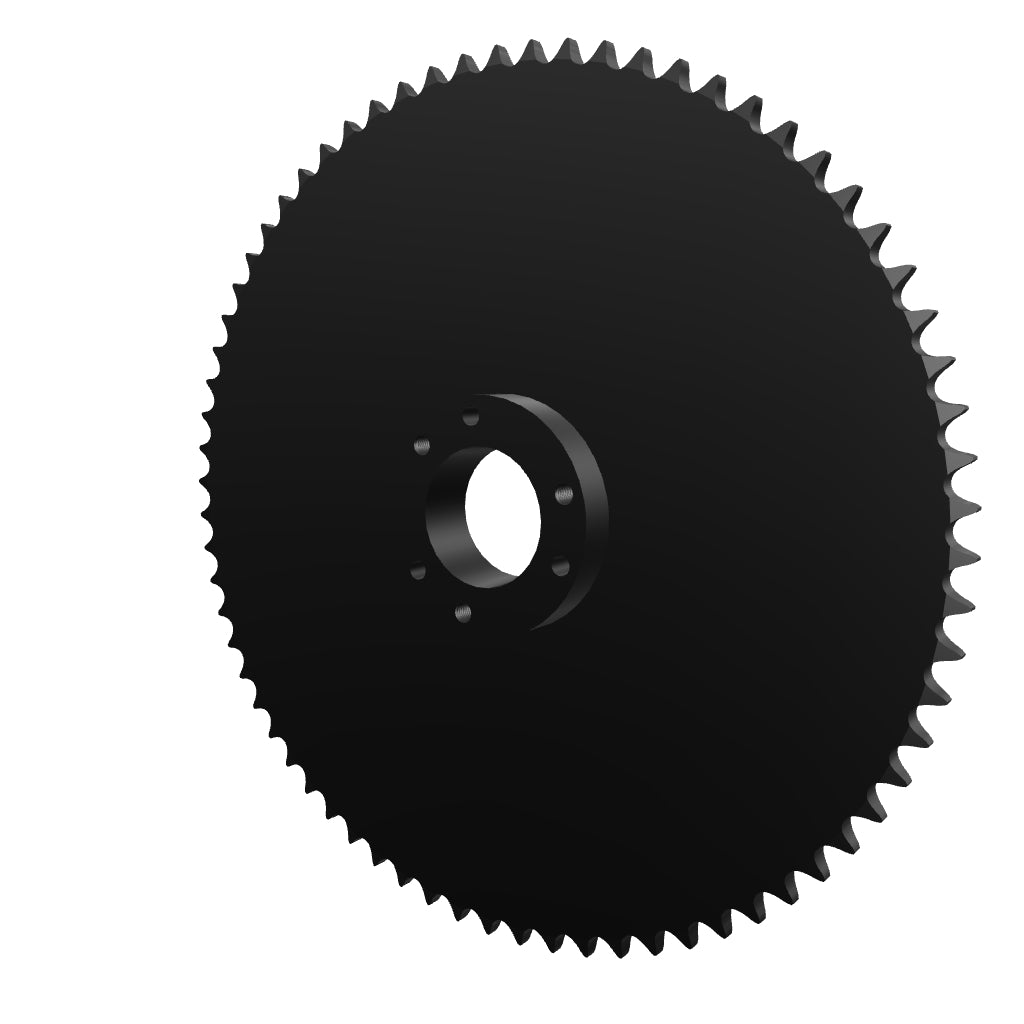

80E70 Taper Bushed Sprocket E Bushing

• QD Bushed Sprockets PDF

Product Details : 80E70 Taper Bushed Sprocket E Bushing

• Part No: 80E70
• Product Type: QD (Bushing)
• Bushing: E
• Type: C
• Chain Strand Type: Single
• ANSI Chain Size: 80
• No. Of Teeth: 70
• Pitch: 1"
• Pitch Diameter: 22.289"
• Outside Diameter: 22.870"
• Bore Max.: 3-1/2"
• Dimension "L1": 2-5/8"
• Dimension "L2": 2-15/16"
• Dimension "C": 6"
• Dimension "Y": 7/8"
• Dimension "G": 1-3/64"
• Dimension "X": 1-5/8"
• Material(s): Carbon Steel
• Certifications: Manufactured using the ISO 9001 quality management system.
• Avg. Weight (lbs): 55.5997

For any information about products, please contact us.

*Photos for reference purposes only.
