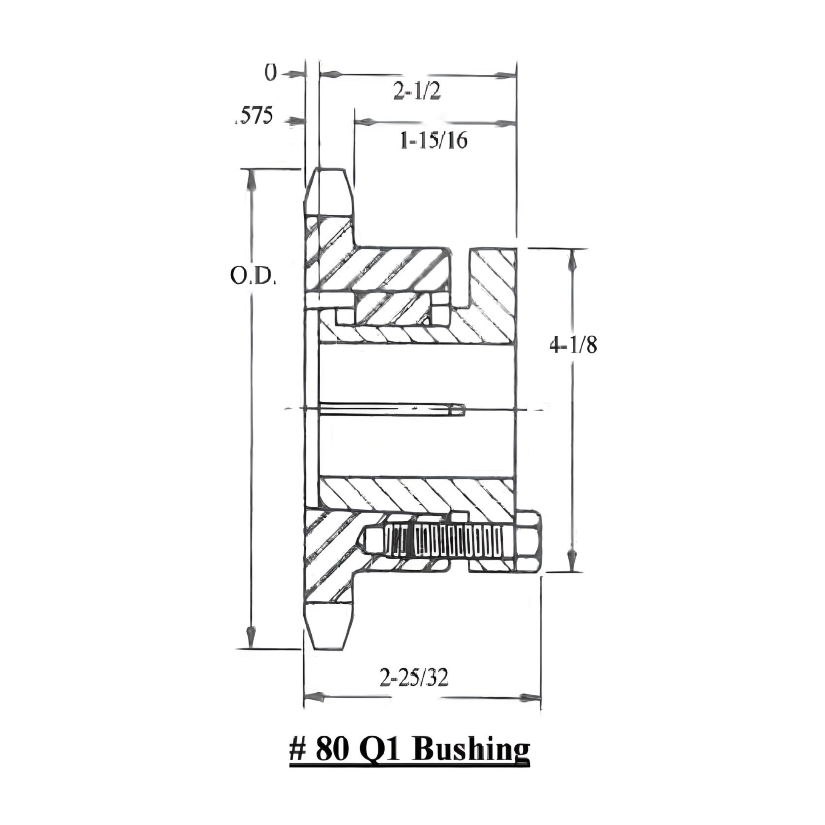

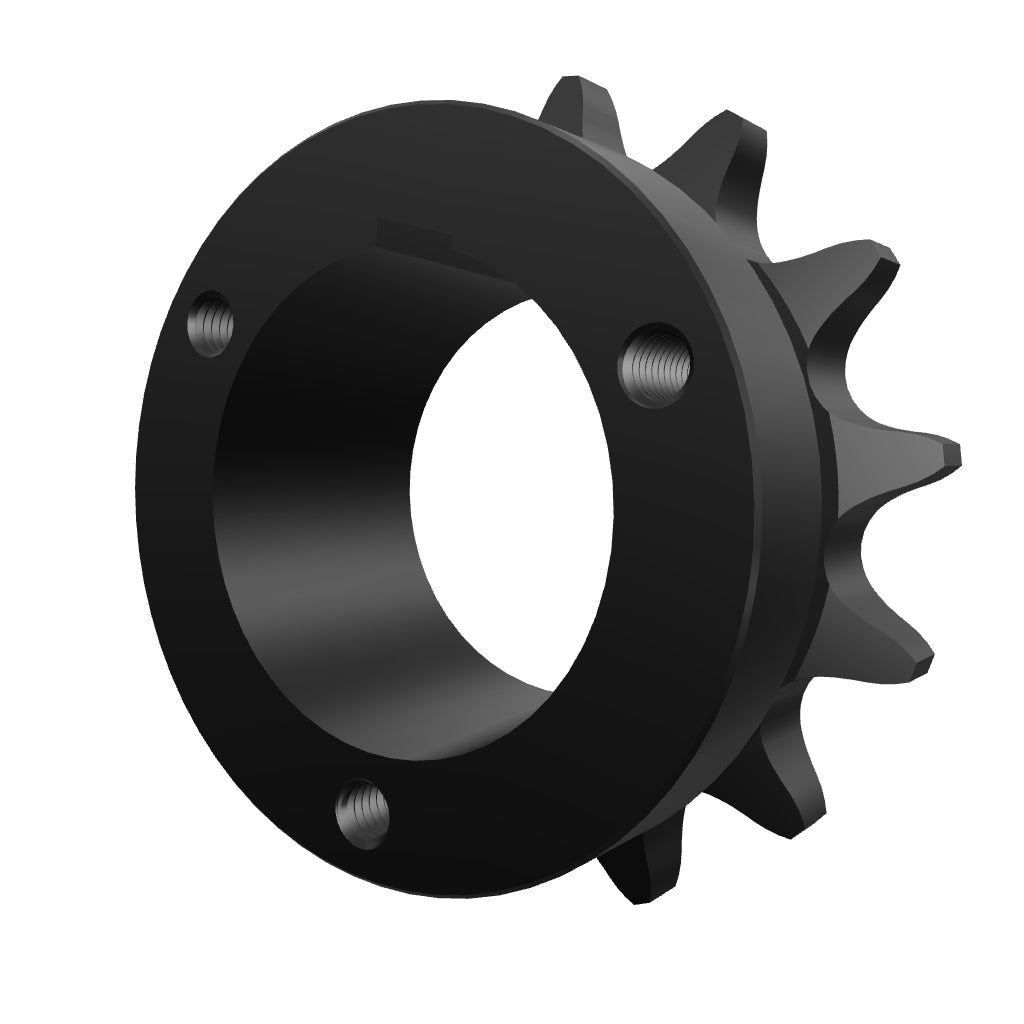

Product Details : 80Q14 Split Taper Bushed Sprocket | 80Q14H
-
Part No: 80Q14H
-
Product Type: ST (Split Taper)
-
Bushing Type: Q1
-
Chain Strand Type: Single
-
ANSI Chain Size: 80
-
No. Of Teeth: 14
-
Pitch: 1"
-
Pitch Diameter: 4.494"
-
Outside Diameter: 4.980"
-
Bore Max.: 2-11/16"
-
Material(s): Carbon Steel
-
Hardened Teeth: Yes
-
Certifications: Manufactured using the ISO 9001 quality management system.
-
Avg. Weight (lbs): 3
For any information about products, please contact us.
*Photos for reference purposes only.
