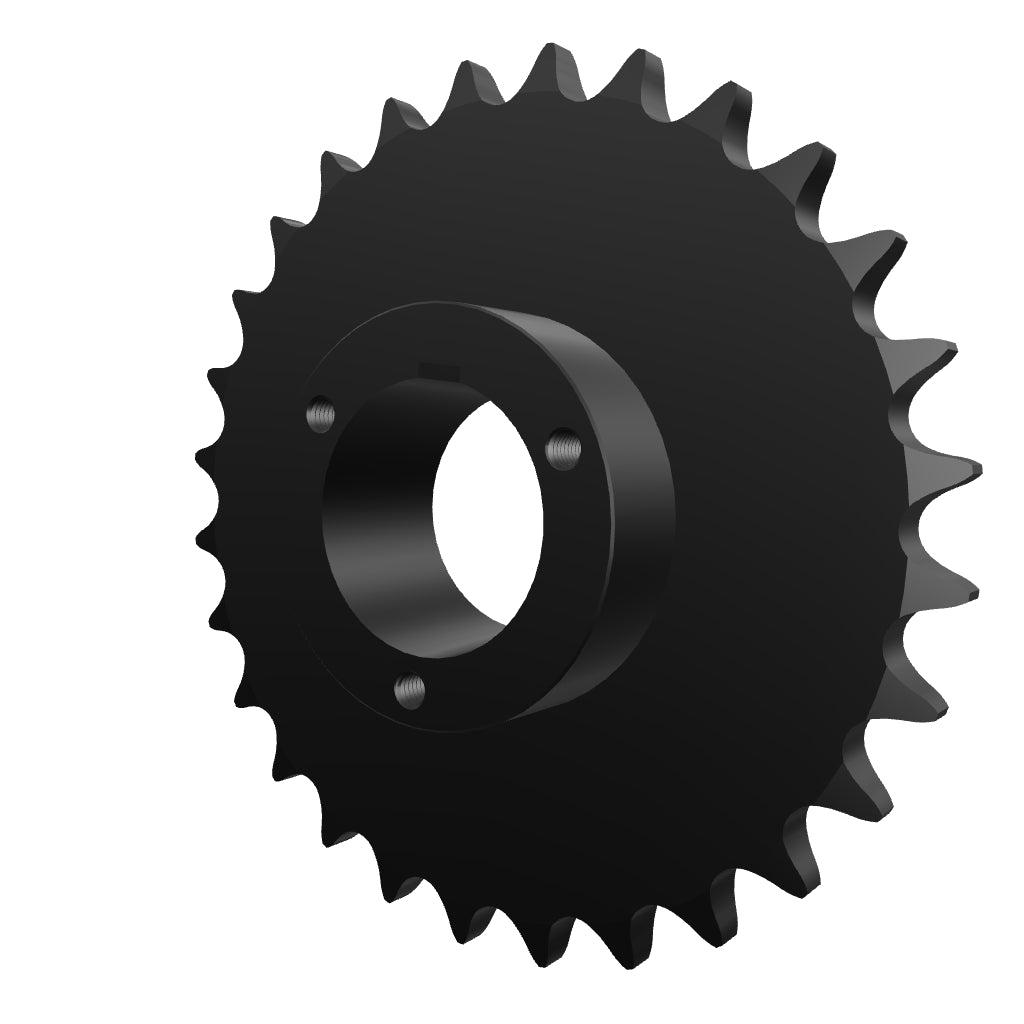

Product Details : 80Q28 Split Taper Bushed Sprocket | 80Q28H
- Part No: 80Q28H
- Product Type: ST (Split Taper)

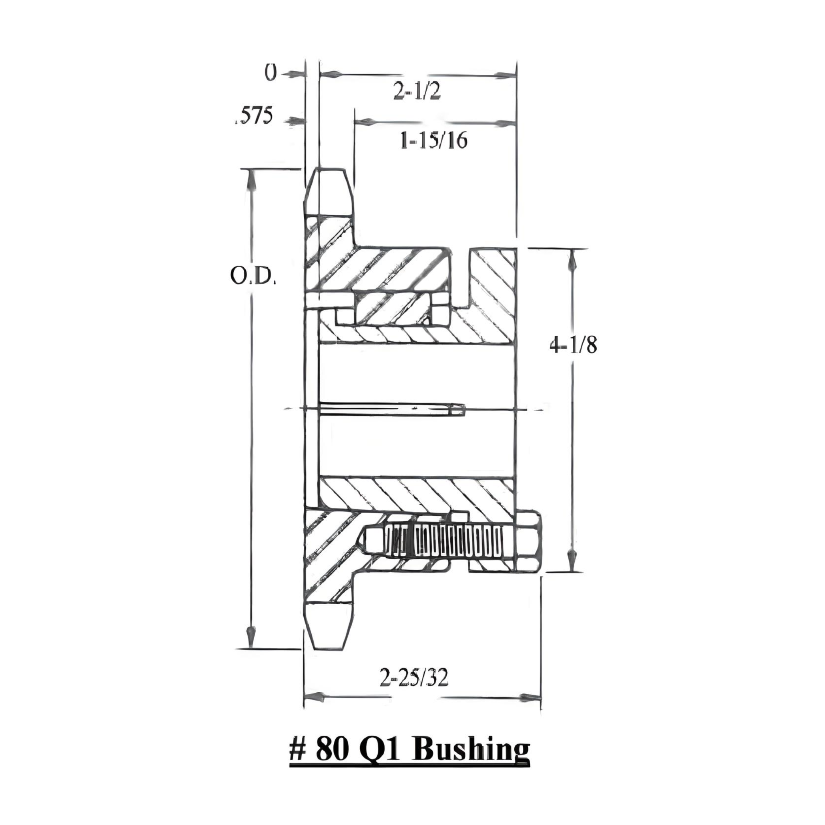

- Bushing Type: Q1
- Chain Strand Type: Single
- ANSI Chain Size: 80
- No. Of Teeth: 28
- Pitch: 1"
- Pitch Diameter: 8.931"
- Outside Diameter: 9.480"
- Bore Max.: 2-11/16"
- Material(s): Carbon Steel
- Hardened Teeth: Yes
- Certifications: Manufactured using the ISO 9001 quality management system.
- Avg. Weight (lbs): 11.4999
For any information about products, please contact us.
*Photos for reference purposes only.
