Product Details : 80Q35 Split Taper Bushed Sprocket | 80Q35H
-
Part No: 80Q35H
-
Product Type: ST (Split Taper)
-
Bushing Type: Q1
-
Chain Strand Type: Single
-
ANSI Chain Size: 80
-
No. Of Teeth: 35
-
Pitch: 1"
-
Pitch Diameter: 11.156"
-
Outside Diameter: 11.710"
-
Bore Max.: 2-11/16"
-
Material(s): Carbon Steel
-
Hardened Teeth: Yes
-
Certifications: Manufactured using the ISO 9001 quality management system.
-
Avg. Weight (lbs): 17.7999
For any information about products, please contact us.

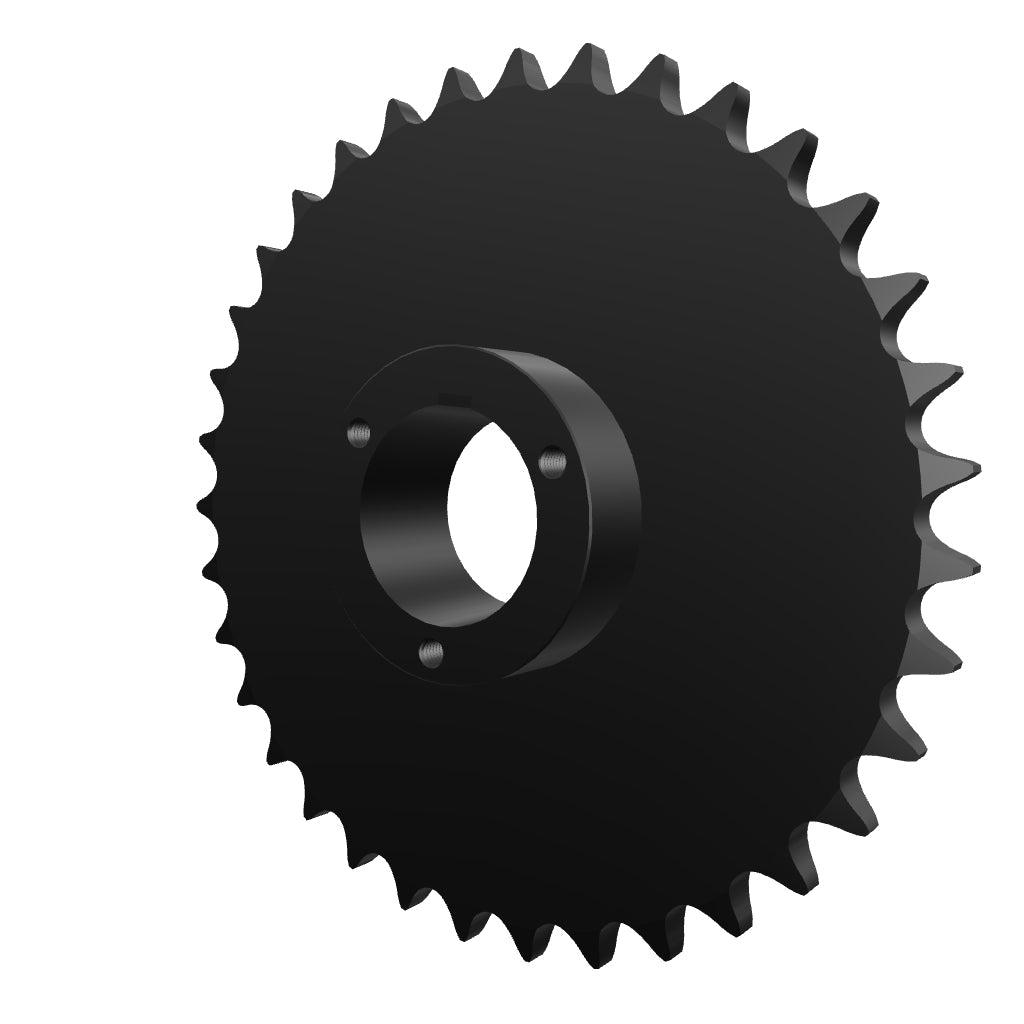

*Photos for reference purposes only.
