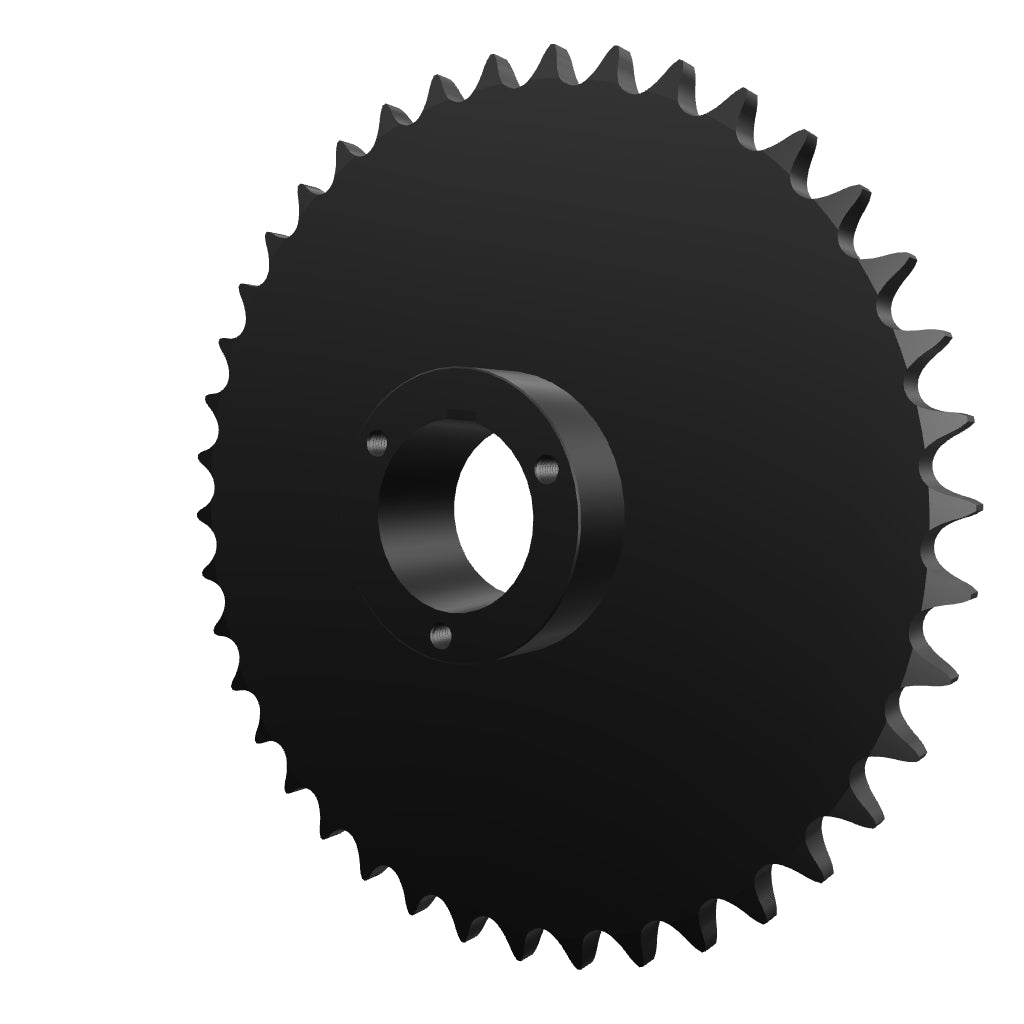

Product Details : 80Q40 Split Taper Bushed Sprocket
-
Part No: 80Q40
-
Product Type: ST (Split Taper)
-

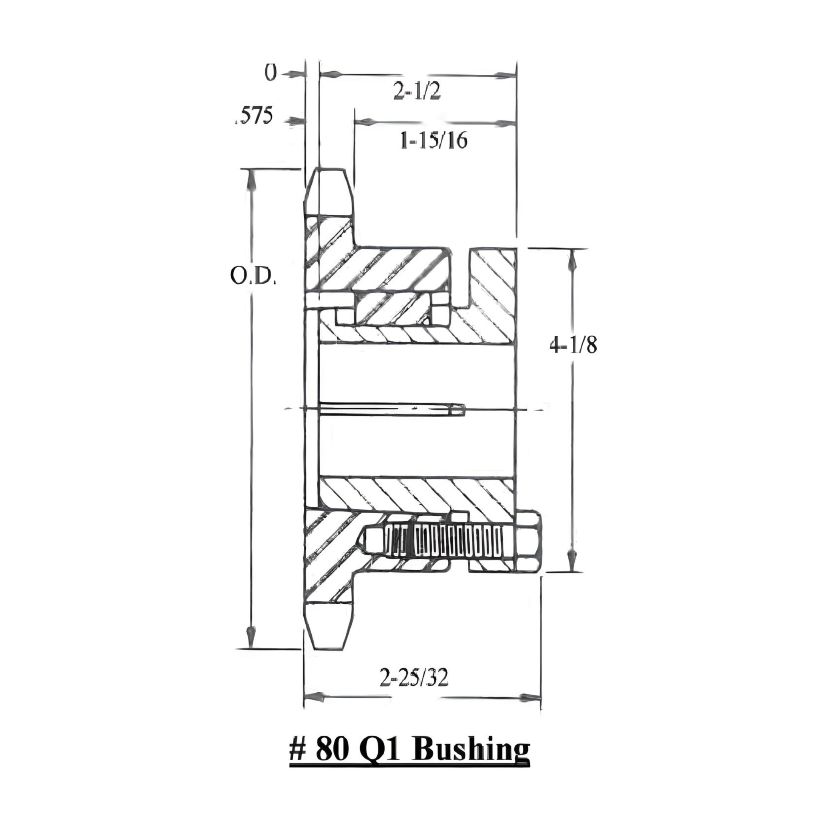

Bushing Type: Q1
-
Chain Strand Type: Single
-
ANSI Chain Size: 80
-
No. Of Teeth: 40
-
Pitch: 1"
-
Pitch Diameter: 12.745"
-
Outside Diameter: 13.310"
-
Bore Max.: 2-11/16"
-
Material(s): Carbon Steel
-
Certifications: Manufactured using the ISO 9001 quality management system.
-
Avg. Weight (lbs): 21.8999
For any information about products, please contact us.
*Photos for reference purposes only.
