Description
Engineered for rugged material handling and severe industrial duty, our 81X conveyor chains deliver exceptional tensile capacity and fatigue resistance under continuous, demanding loads. Precision-manufactured with heavy-gauge side plates and through-hardened alloy pins, they withstand severe shock loading while resisting pitch elongation and abrasive joint wear. The low-profile, straight-sidebar construction ensures smooth sliding across conveyor beds and clean engagement with standard sprockets. Ideal for sawmills, lumber processing, grain handling, and heavy assembly lines, they provide dependable, low-maintenance conveying performance.

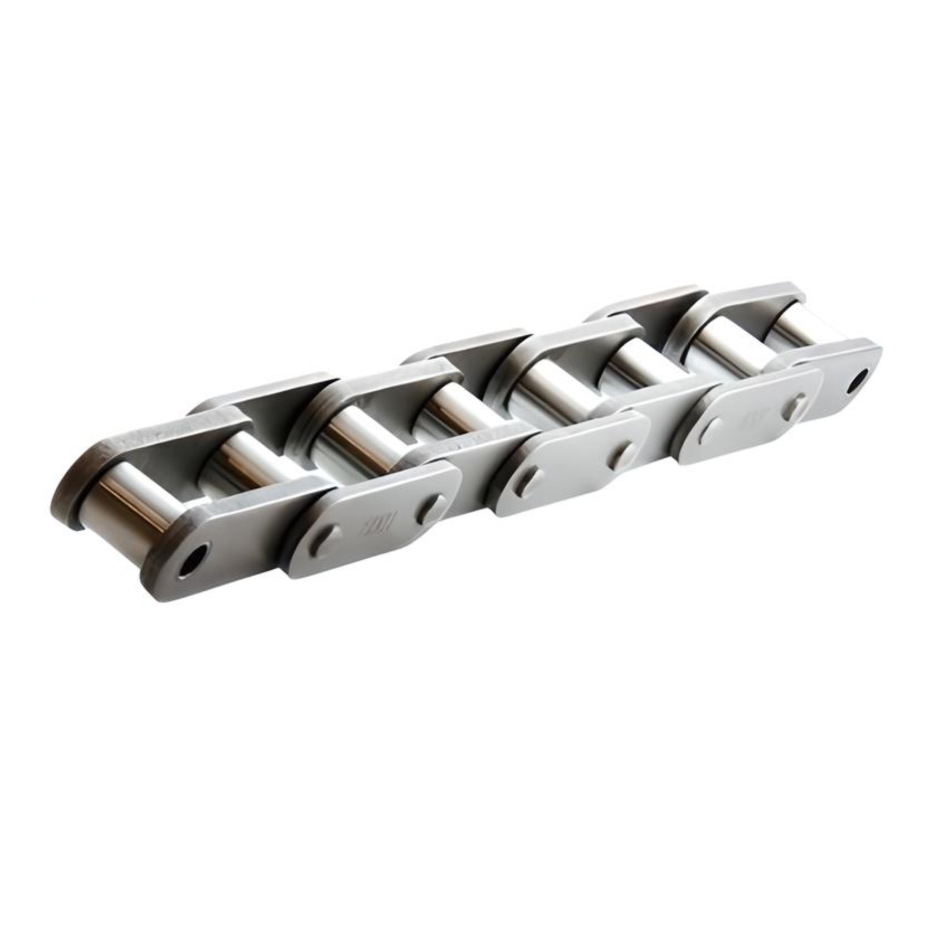

Product Details : 81XH Conveyor Chain - 10ft
- Part No: CC81XH
- Product Type: Conveyor Chain
- Chain Number: 81XH
- Length: 10ft
- No. Links in 10 feet: 46

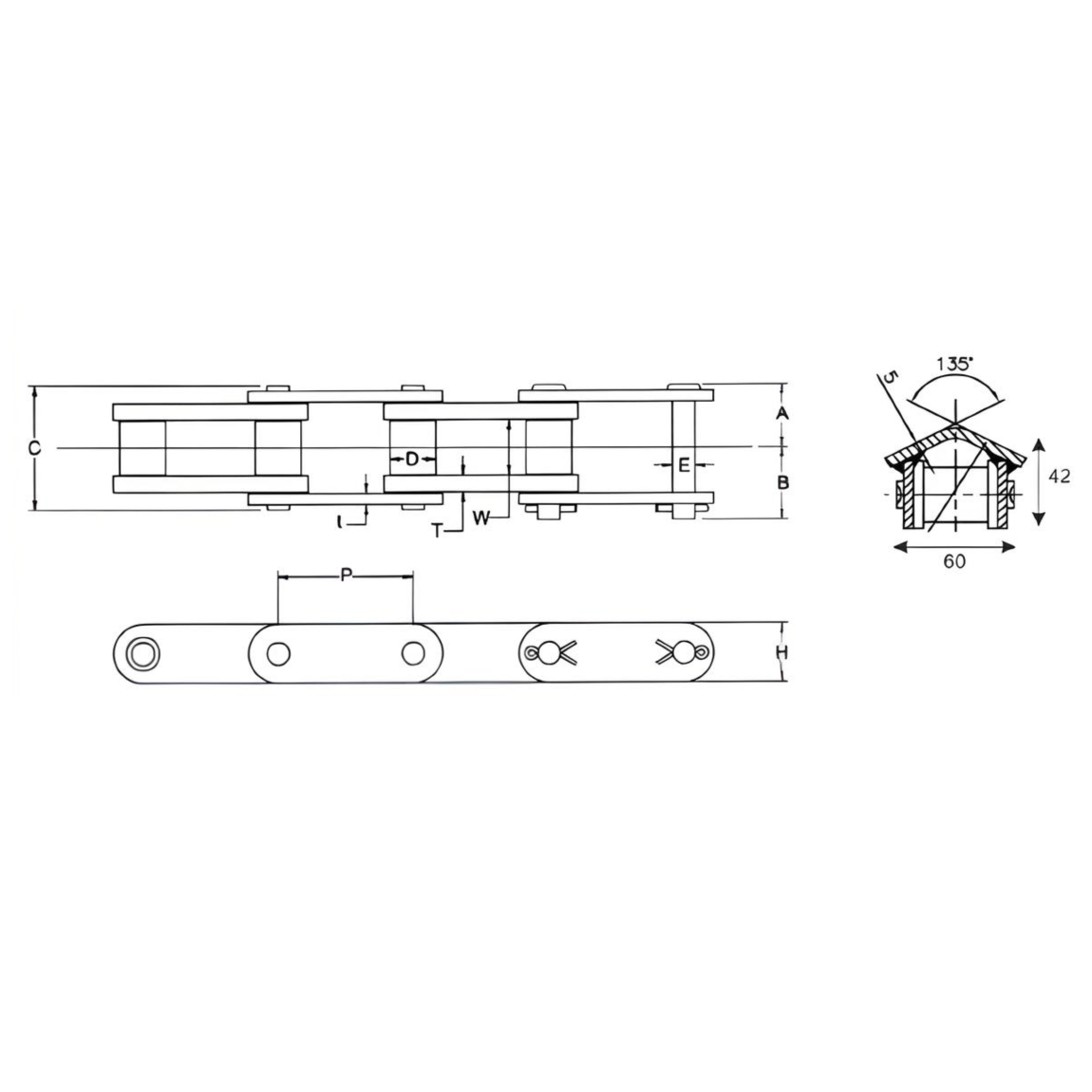

- Pitch (P): 2.609"
- Roller Dia. (D): 0.906"
- Inner Plates (W): 1.06"
- Pin Dimensions (E): 0.437"
- Pin Dimensions (C): 2.389"
- Plate Dimensions (H): 1.250"
- Plate Dimensions (A): 1.196"
- Plate Dimensions (B): 1.381"
- Plate Dimensions (t): 0.219"
- Plate Dimensions (T): 0.313"
- Average Ultimate Strength lbs.: 34500 lbs
- Max. Allow. Load. (lbs): 3700 lbs
- Material(s): Carbon Steel
For any information about products, please contact us.
*Photos for reference purposes only.
