Description
Built without rotating rollers, our rollerless chains engage sprockets directly on precision-formed bushings for robust performance in high-friction, low-speed applications. Constructed from heat-treated carbon steel with through-hardened alloy pins, this streamlined design eliminates internal roller gaps where dirt, abrasive fines, and particulate debris can pack and bind. The solid joint assembly delivers high tensile strength and steady resistance to shock loading and pitch elongation. Ideal for tensioning mechanisms, lifting counterweights, sorting lines, and harsh material handling where standard rollers are prone to seizing or premature wear.

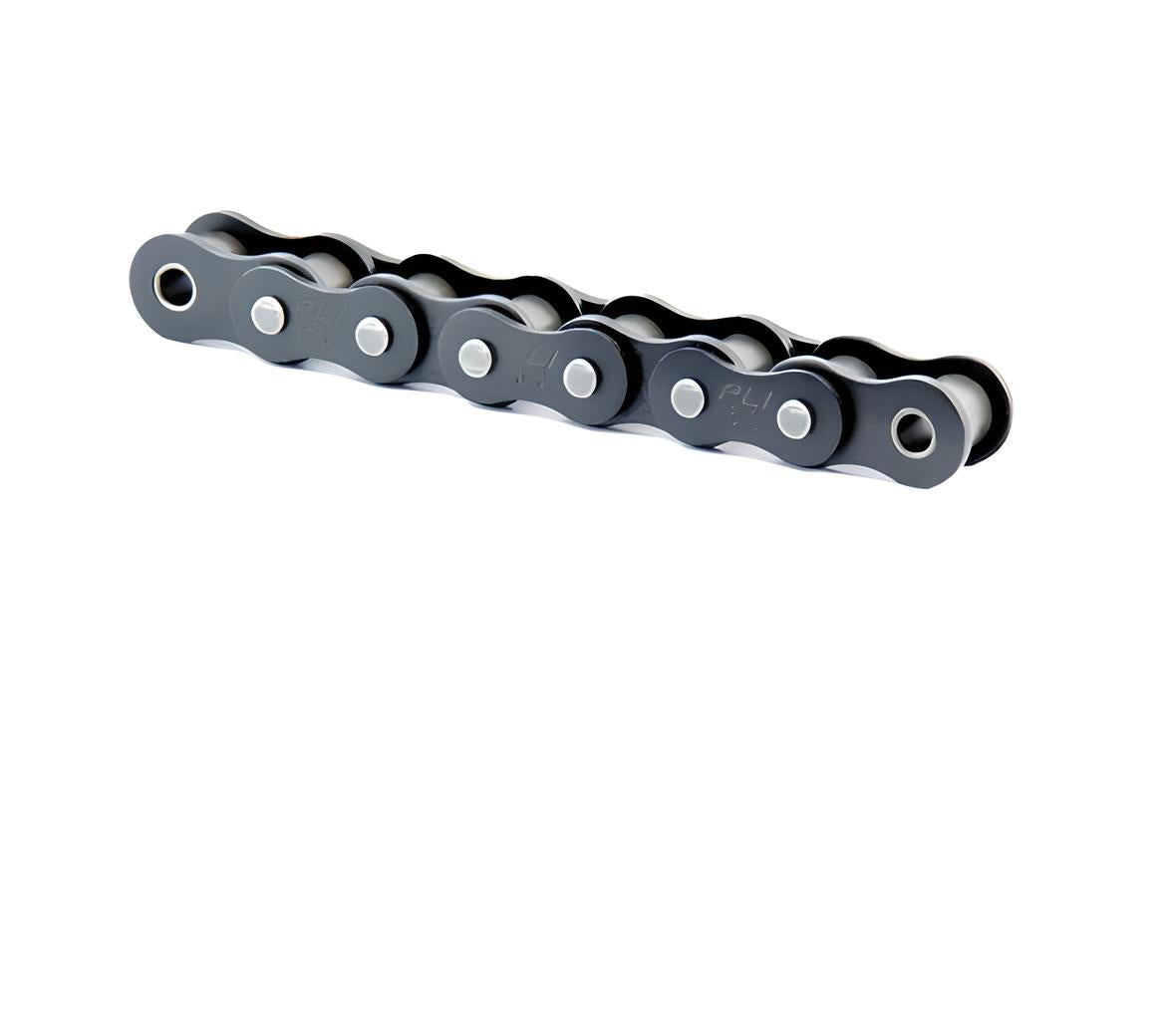

#85 Rollerless Chain PLI Premium | RC85 (10ft)
DETAILS & SPECIFICATIONS
- System of measurement: ANSI
- Material: Carbon Steel
- Type: Rollerless
- Chain No.: 85
- PLI Chain No.: RC85
- Pitch (P): 1"
- Roller Dia.(D): 0,443"
- Roller Width (W): 5/8"
- Pin Dia. (d): 0,312"
- Plate Height (H): 0,945"
- Plate Thickness (T): 0,122"
- Overall Width ( A B ): A 0,634" B 0,699"
- Average Ultimate Strength Lbs: 17600
- Average Weight Per Foot Lbs : 1.49
- Average Weight 10 FT Variant Grams: 6758.5208
For any information about products, please contact us.
*Photos for reference purposes only.
