AT3 Open End Timing Belt 20mm Wide - Steel Cord | 20LAT3URS

Product Details : AT3 Open End Timing Belt 20mm Wide - Steel Cord | 20LAT3URS

• Part No: 20LAT3URS
• Product Type: Polyurethane Open End Timing Belt
• Length: Sold Per Foot (ft)

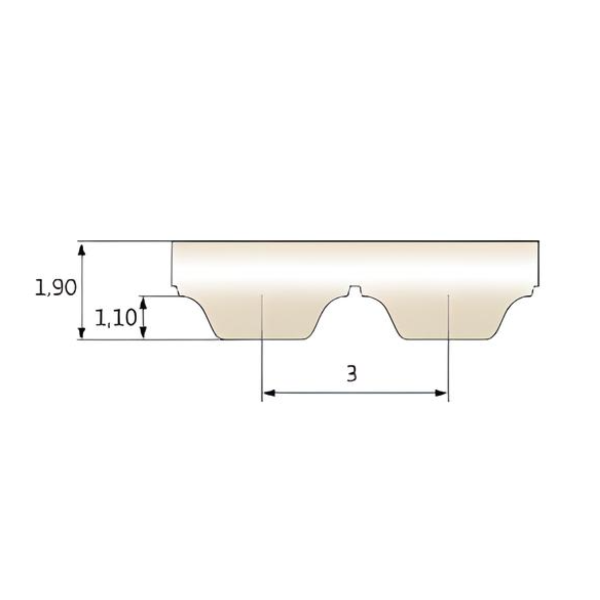

• Belt Profile: AT3
• Belt Pitch: 3mm
• Belt Width: 20mm
• Tooth Height: 1.1mm
• Belt Thickness: 1.9mm
• Tooth Cover: None
• Back Cover: None
• Max Traction Load (N) : 820
• Breaking Strength (N): 3280
• Elongation at MTL (mm/m) : 4
• Standard Width Tolerance: +/- 0.5mm
• Standard Length Tolerance: +/- 0.5mm
• Standard Thickness Tolerance: +/- 1mm
• ISO: ISO 17396
• Material(s): White Polyurethane Thermoplastic 92 ShA
• Material Cord: Zinked Steel (S and Z torsion)

Belts offered in custom widths. For more information and pricing about these custom products please contact us.

For any information about products, please contact us.

*Photos for reference purposes only.
