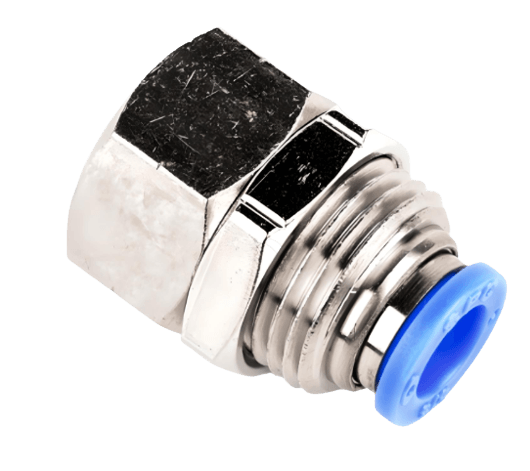

Product Details : Bulkhead Union 1/4" Tube x 1/4" NPT Push to Connect - Brass
-
Part No: P11.1/4.1/4
-
Product Category: Push to Connect
-
Format: Standard
-
Style: Bulkhead Union
-
Number Of Exits: 1
-
Type: Female Fitting
-
O-Ring: No O-Ring
-
Material(s): Nickel Plated Brass
-
Fluid Type: Air (no other gases or liquids)
-
Connection 1: Push to Connect 1/4"
-
Connection 2: 1/4" NPT
-
øD: 1/4"
-
Rc: NPT1/4"
-
øP: 12mm
-
M: UNF9/16
-
A: 12mm
-
B: 32mm
-
C: 17mm
-
E: 6.36mm
-
G: 13.5mm
-
H1: 11/16"
-
H2: 11/16"
-
Working Pressure Range: 0-284PSI / 0 - 20Kgf-cm² (0-1960kpa)
-
Negative Pressure: -29.5 in Hg / -750mmHg (10Torr)
-
Temperature Range: 32-176°F / 0-80°C
-
Applicable Tube Material: Polyurethane and Nylon
For any information about products, please contact us.
*Photos for reference purposes only.
