Description

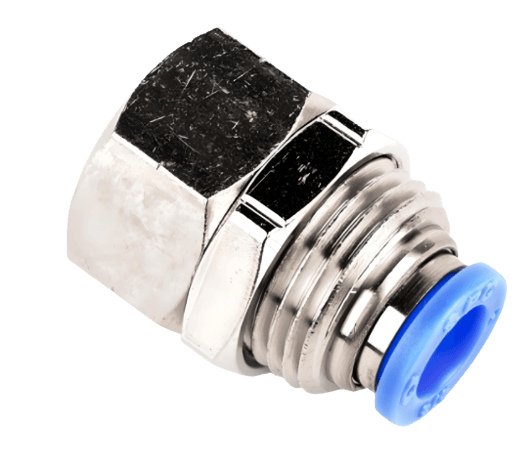

Product Details : Bulkhead Union 1/4" Tube x 1/8" NPT Push to Connect - Brass
- Part No: P11.1/4.1/8
- Product Category: Push to Connect
- Format: Standard
- Style: Bulkhead Union
- Number Of Exits: 1
- Type: Female Fitting
- O-Ring: No O-Ring
- Material(s): Nickel Plated Brass
- Fluid Type: Air (no other gases or liquids)
- Connection 1: Push to Connect 1/4"
- Connection 2: 1/8" NPT
- øD: 1/4"
- Rc: NPT1/8"
- øP: 12mm
- M: UNF9/16
- A: 9mm
- B: 27.5mm
- C: 17mm
- E: 6.36mm
- G: 8.9mm
- H1: 11/16"
- H2: 11/16"
- Working Pressure Range: 0-284PSI / 0 - 20Kgf-cm² (0-1960kpa)
- Negative Pressure: -29.5 in Hg / -750mmHg (10Torr)
- Temperature Range: 32-176°F / 0-80°C
- Applicable Tube Material: Polyurethane and Nylon
For any information about products, please contact us.
*Photos for reference purposes only.
