Description

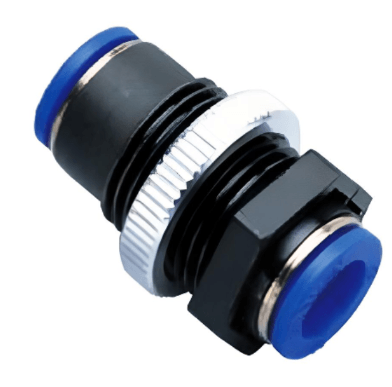

Product Details : Bulkhead Union 8mm Tube Push to Connect
- Part No: P10P.08
- Product Category: Push to Connect
- Format: Standard
- Style: Bulkhead Union
- Number Of Exits: 1
- Type: Tube Fitting
- O-Ring: No O-Ring
- Material(s): Polymer
- Fluid Type: Air (no other gases or liquids)
- Connection 1: Push to Connect 8mm
- Connection 2: Push to Connect 8mm
- øD: 8mm
- øP1: 13.6mm
- øP2: 13.6mm
- M: M16 X 1.5P
- B: 36.6mm
- C1: 17.8mm
- C2: 17.8mm
- E: 8.8mm
- G: 6mm
- H: 19mm
- Working Pressure Range: 0-284PSI / 0 - 20Kgf-cm² (0-1960kpa)
- Negative Pressure: -29.5 in Hg / -750mmHg (10Torr)
- Temperature Range: 32-176°F / 0-80°C
- Applicable Tube Material: Polyurethane and Nylon
For any information about products, please contact us.
*Photos for reference purposes only.
