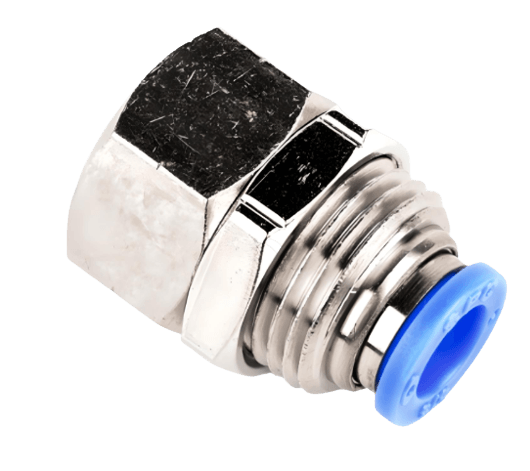

Product Details : Bulkhead Union 8mm Tube x 1/4" BSPT (R) Push to Connect - Brass
-
Part No: P11.08.1/4
-
Product Category: Push to Connect
-
Format: Standard
-
Style: Bulkhead Union
-
Number Of Exits: 1
-
Type: Female Fitting
-
O-Ring: No O-Ring
-
Material(s): Nickel Plated Brass
-
Fluid Type: Air (no other gases or liquids)
-
Connection 1: Push to Connect 8mm
-
Connection 2: 1/4" BSPT (R)
-
øD: 8mm
-
Rc: R1/4"
-
øP: 13mm
-
M: M16 X 1.0P
-
A: 12mm
-
B: 34.9mm
-
C: 17.8mm
-
E: 7.7mm
-
G: 14mm
-
H1: 19mm
-
H2: 19mm
-
Working Pressure Range: 0-284PSI / 0 - 20Kgf-cm² (0-1960kpa)
-
Negative Pressure: -29.5 in Hg / -750mmHg (10Torr)
-
Temperature Range: 32-176°F / 0-80°C
-
Applicable Tube Material: Polyurethane and Nylon
