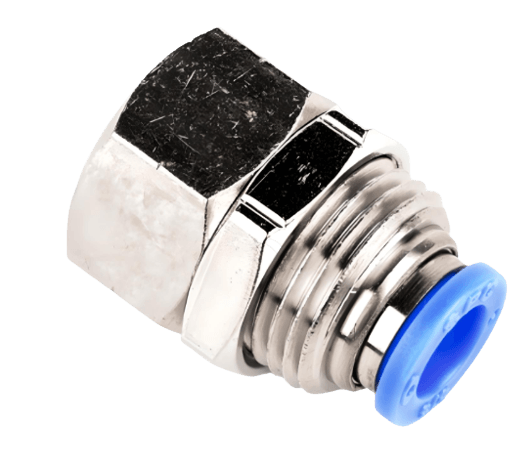

Bulkhead Union 8mm Tube x 1/8" BSPT (R) Push to Connect - Brass

Product Details : Bulkhead Union 8mm Tube x 1/8" BSPT (R) Push to Connect - Brass

• Part No: P11.08.1/8
• Product Category: Push to Connect
• Format: Standard
• Style: Bulkhead Union
• Number Of Exits: 1
• Type: Female Fitting
• O-Ring: No O-Ring
• Material(s): Nickel Plated Brass
• Fluid Type: Air (no other gases or liquids)
• Connection 1: Push to Connect 8mm
• Connection 2: 1/8" BSPT (R)
• øD: 8mm
• Rc: R1/8"
• øP: 13mm
• M: M16 X 1.0P
• A: 9mm
• B: 28.9mm
• C: 17.8mm
• E: 7.7mm
• G: 8mm
• H1: 19mm
• H2: 19mm
• Working Pressure Range: 0-284PSI / 0 - 20Kgf-cm² (0-1960kpa)
• Negative Pressure: -29.5 in Hg / -750mmHg (10Torr)
• Temperature Range: 32-176°F / 0-80°C
• Applicable Tube Material: Polyurethane and Nylon

For any information about products, please contact us.

*Photos for reference purposes only.
