15 Series Butt Fastener 5/16"-18 Thread

15 Series Butt Fastener 5/16"-18 Thread

Details & Specifications

• Part No: 15FAC3886
• Series: 15 Series
• Dimensions in Inch: 2.223 × 0.625 × 0.309
• Weight Lbs: 0,145
• McMaster #5537T272

• Butt Fasteners are an ideal way to join two extrusions end to end when longer bars need to be reduced in length.

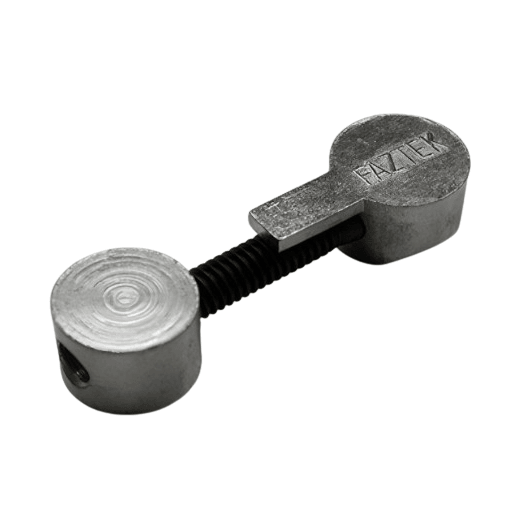

• The assembly includes (1) Zinc Anchor Fastener Cam, (1) 5/16"-18 x 1-3/4" SHCS, and (1) Steel Threaded part
• The connectors are flush when installed, and provide a very clean and aesthetic look. Ideal when Joining Plates cannot be used

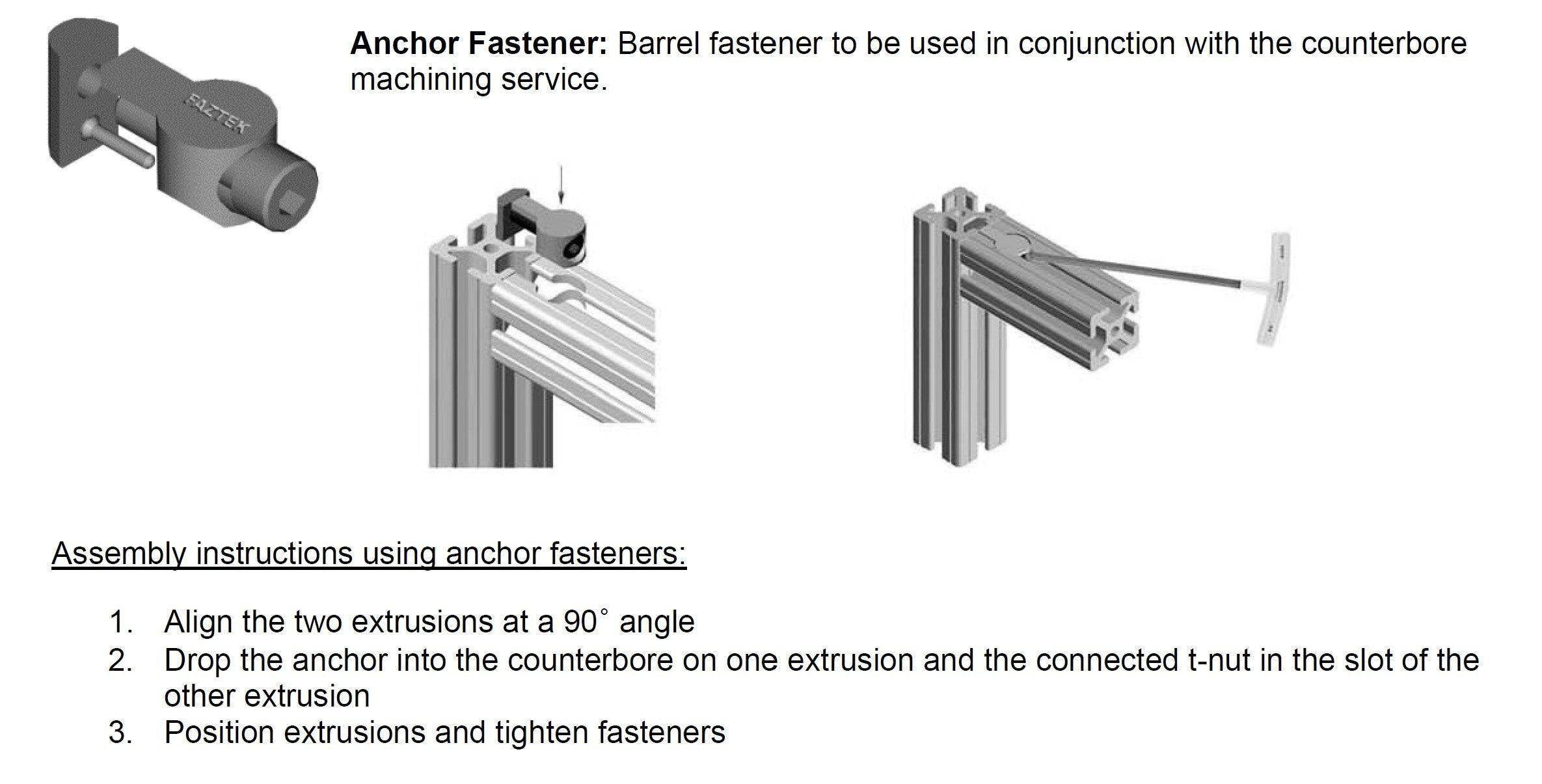

• 15MA9071 Counterbore machining are required to use the anchor fasteners. A Ø 0.812" (13/16") two flute endmill is required to make the counterbore. The counterbore needs to be machined at 0.855" from the edge, and 0.660? deep

For any information about products, please contact us.

*Photos for reference purposes only.
