Cushion Seal (V6) 0.375" x 0.687" x 0.157" - Nitrile

Product Details : Cushion Seal (V6) 0.375" x 0.687" x 0.157" - Nitrile

• Part No: V615700375/4180
• Product Category: Rod Seals
• Product Type: Cushion Seal
• Series: V6
• Material(s): Nitrile
• Material Code: NBR
• Durometer: 80A
• Temperature Range: -40°F to +250°F (-40°C to +121°C)
• Surface Speed: < 3.3 ft/s (1 m/s)
• System Of Measurement: Inch
• Rod Diameter: 0.375"
• Dimensions: 0.375" x 0.687" x 0.157"

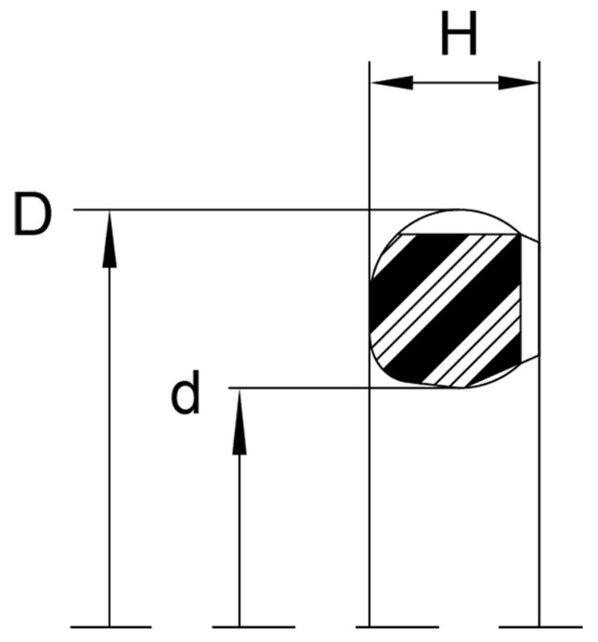

• Nominal I.D. (d): 0.375"
• Nominal O.D. (D): 0.687"
• Nominal Height (H): 0.157"
• Nominal Cross Section: 0.156"
• Details:

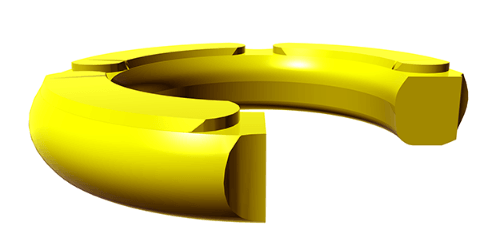

  •V6-style provides a check-valve action used in the cushioning of pneumatic cylinders
  •Seals positively on the cylinder end stroke and allows a quick release in the opposite direction through a series of slots and pedestals, allowing the pressure to blow past the seal

For any information about products, please contact us.

*Photos for reference purposes only.
