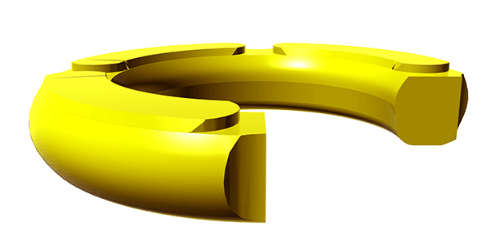

Product Details : Cushion Seal (V6) 0.375" x 0.687" x 0.157" - Ultra Polyurethane
-
Part No: V615700375/4622
-
Product Category: Rod Seals
-
Product Type: Cushion Seal
-
Series: V6
-
Material(s): Ultra Polyurethane
-
Material Code: AU
-
Durometer: 90A
-
Temperature Range: -65°F to +225°F (-54°C to +107°C)
-
Surface Speed: < 3.3 ft/s (1 m/s)
-
System Of Measurement: Inch
-
Rod Diameter: 0.375"
-
Dimensions: 0.375" x 0.687" x 0.157"
-

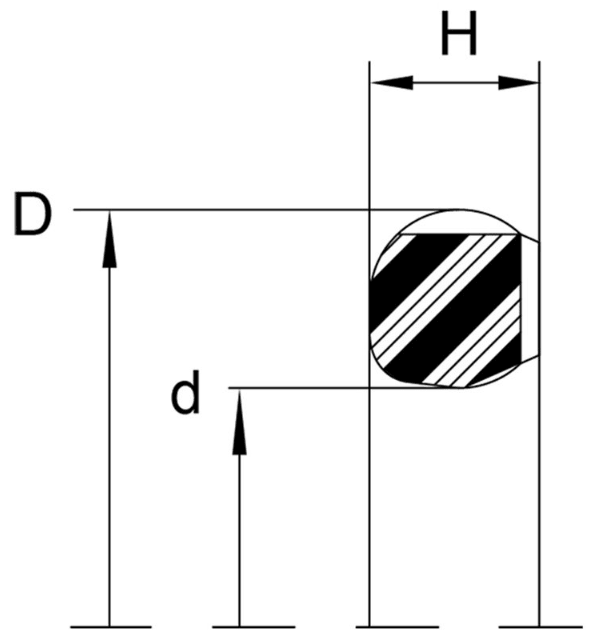

Nominal I.D. (d): 0.375"
-
Nominal O.D. (D): 0.687"
-
Nominal Height (H): 0.157"
-
Nominal Cross Section: 0.156"
-
Details:
•V6-style provides a check-valve action used in the cushioning of pneumatic cylinders
•Seals positively on the cylinder end stroke and allows a quick release in the opposite direction through a series of slots and pedestals, allowing the pressure to blow past the seal
