Drop-In Black Panel Mount Block For 10 Series
Details & Specifications
-
Part No: 10AC7820
-
Series: 10 Series
-
Dimensions in Inch: 0.825" x 0.688" x 0.667"
-
Bolt Size: 1/4-20
-
Weight Lbs: 0.1
- They will fit our 10 Series (25 series – 25mm) or 6mm wide slot T-Slotted Extrusions
- The blocks drop in to the slots, and 1/4 – turn into the slot to lock them into position.
-
1/4-20 x 3/4″ button head screw is included.

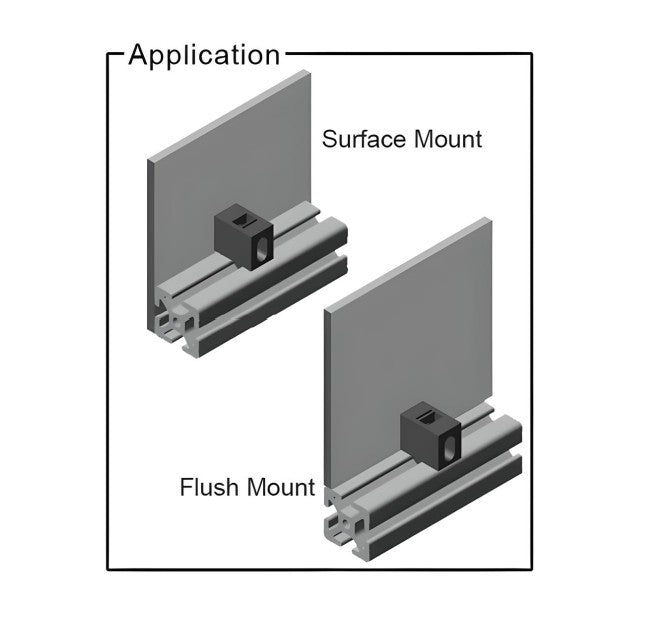

- The panel mount blocks are perfect for mounting panels to your 10 series frames. The panel blocks will allow you to surface-mount the panels, or flush-mount 1/4″ thick panels.
For any information about products, please contact us.
*Photos for reference purposes only.
