Product Details : Head Seal 2.875" x 2.750" x 0.125" - Polyurethane
-
Part No: HS12-039/U92
-
Product Category: O-Rings
-
Product Type: Head Seal
-
Material(s): Polyurethane
-
Material Code: AU
-
Durometer: 92A
-
Temperature Range: -40°F to +250°F (-40°C to +121°C)
-
Pressure Range: ? 5000 PSI (? 345 Bar)
-
System Of Measurement: Inch
-
Replaces O-Ring: -039
-
Bore Diameter: 2.875"
-

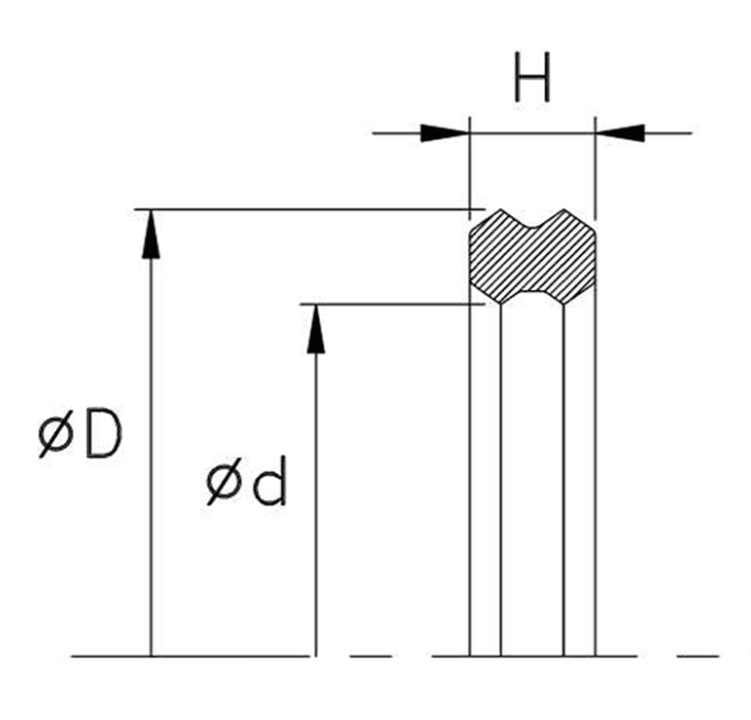

Dimensions: 2.875" x 2.750" x 0.125"
-
Nominal I.D. (d): 2.750"
-
Nominal O.D. (D): 2.875"
-
Nominal Height (H): 0.125"
-
Cross-Section: 1/16"
-
Details:
•Head Seals are used in static applications as replacements to O-ring/Back-up assemblies
For any information about products, please contact us.

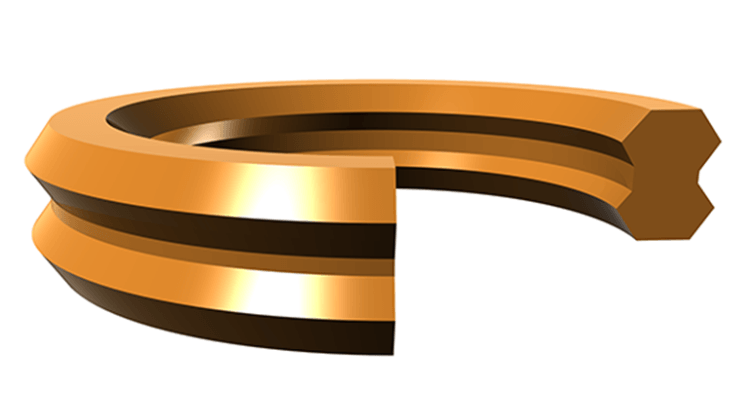

*Photos for reference purposes only.
