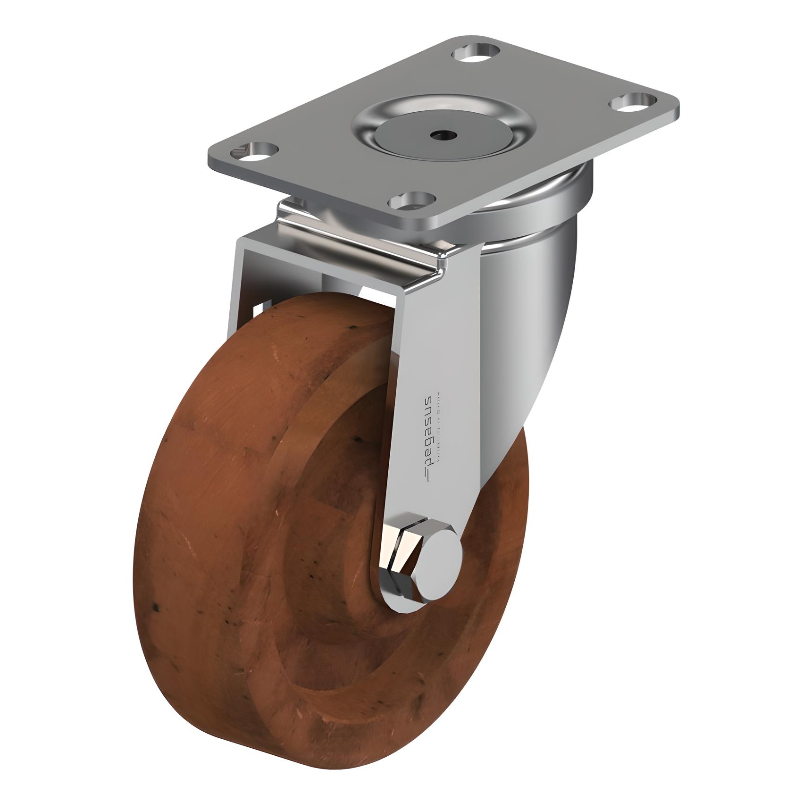

Product Details : Heat Resistant Phenolic Red Caster 5" x 1-1/4" Swivel 275 lbs Plain Bore Bearing P12X Series
-
Product Type: Medium Light Duty Casters
-
Series: P12X Series
-
Wheel Material: Heat Resistant Phenolic Red
-
Caster Type: Swivel
-
Brake Options: No Brake
-
Mount Type: Top Plate
-
Plate Material: Stainless Steel
-
Wheel Diameter: 5"
-
Wheel Width: 1-1/4"
-
Tread / Tire Material(s): Solid Red Heat Resistant Phenolic
-
Wheel Core / Rim Material(s): Solid Red Heat Resistant Phenolic
-

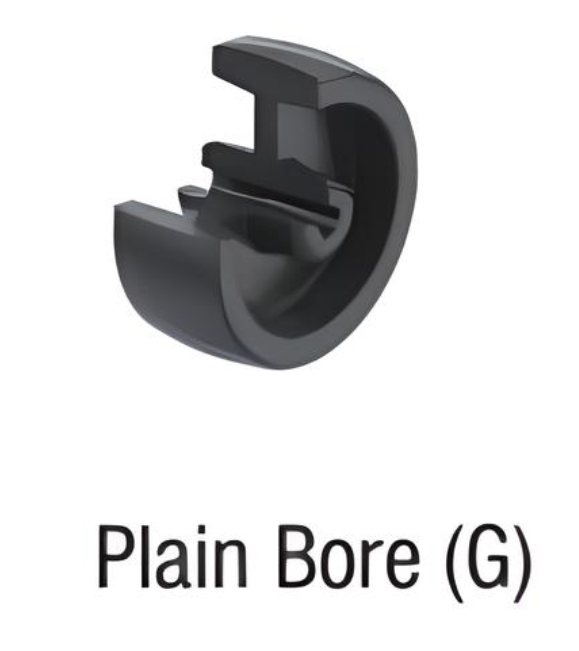

Bearing Type: Plain Bore Bearing
-
Load Capacity (lbs): 275 lbs
-
Total Height: 6-1/8"
-
Swivel Lead: 1-5/16"
-
Top Plate No.: 12
-
Plate Size: 2-1/2" x 3-5/8"
-
Bolt Hole Spacing: 1-3/4" x 2-13/16" to 3-1/16"
-
Bolt Hole Size: 5/16"
-
Where Used:
• Baking carts
• Autoclaves
• Medical equipment
-
Features:
• Hardened stainless steel double ball raceways with Ø 1/2" kingpin
• 304 stainless steel with polished finish for excellent rust and corrosion resistance
• Stainless steel 3/8" axle and locknut
• Delrin bearing wheels offer corrosion resistance and smooth operation in humid environments (economical plain bore HRP and HBP wheels)
• Rig leg spacing: 1-9/16"
-
Wheel Treads: Red phenolic wheels roll extremely well and will withstand intermittent heat up to 425 degrees
-
Certified Quality Management System: ISO 9001
-
Warranty: 3 Year
