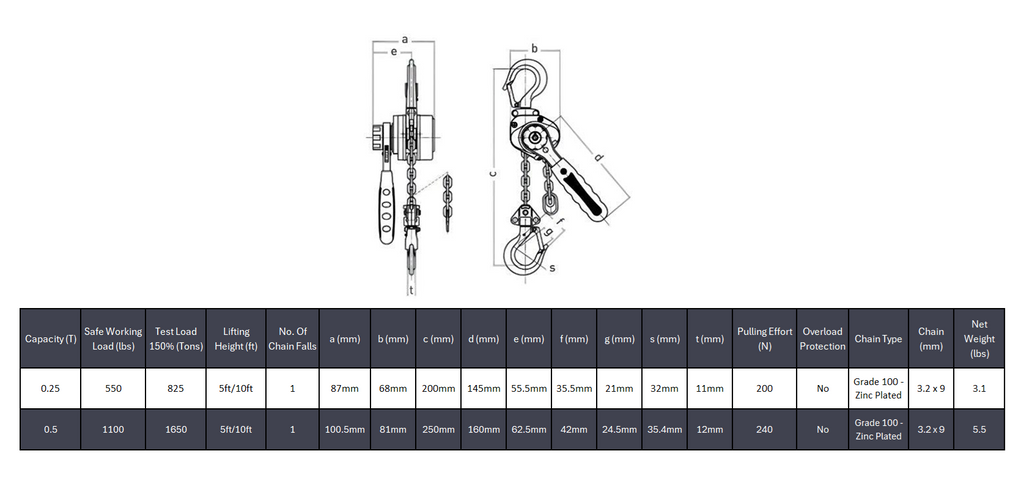

• Dimensions PDF
This Heavy-Duty Compact Lever Chain Hoist is a reliable lifting tool, capable of supporting a high weight capacity. Its compact design and lever-operated chain make it easy to control, and ideal for use in narrow spaces. Perfect for industrial and construction sites.
Product Details : Heavy-Duty Compact Lever Chain Hoist
-
Product Category: Compact Heavy Duty Lever Chain Hoist
-
Overload Protection: No
-
Chain Type: Grade 100 - Zinc Plated
-
Chain (mm): 3.2 x 9
-
Details:
- Meets ASME B30.21
- 150% test load
- Complete nameplate with serial number
- Testing and inspection certificate included
- Top and bottom hooks rotate 360°
- Ultra-short 360° handle rotation
- Ultra-robust fork-type cast-steel safety latch
- 4 links load sprocket for better performance and stability
- Main parts and gears are made of heat-treated alloy steel and cover made of aluminum alloy steel.
- Moving parts coated with high-performance Li-MoS2 (molybdenum disulfite) grease for optimal use in high & low temperature environments
-
Warranty: 2 yrs
For any information about products, please contact us.
*Photos for reference purposes only.
