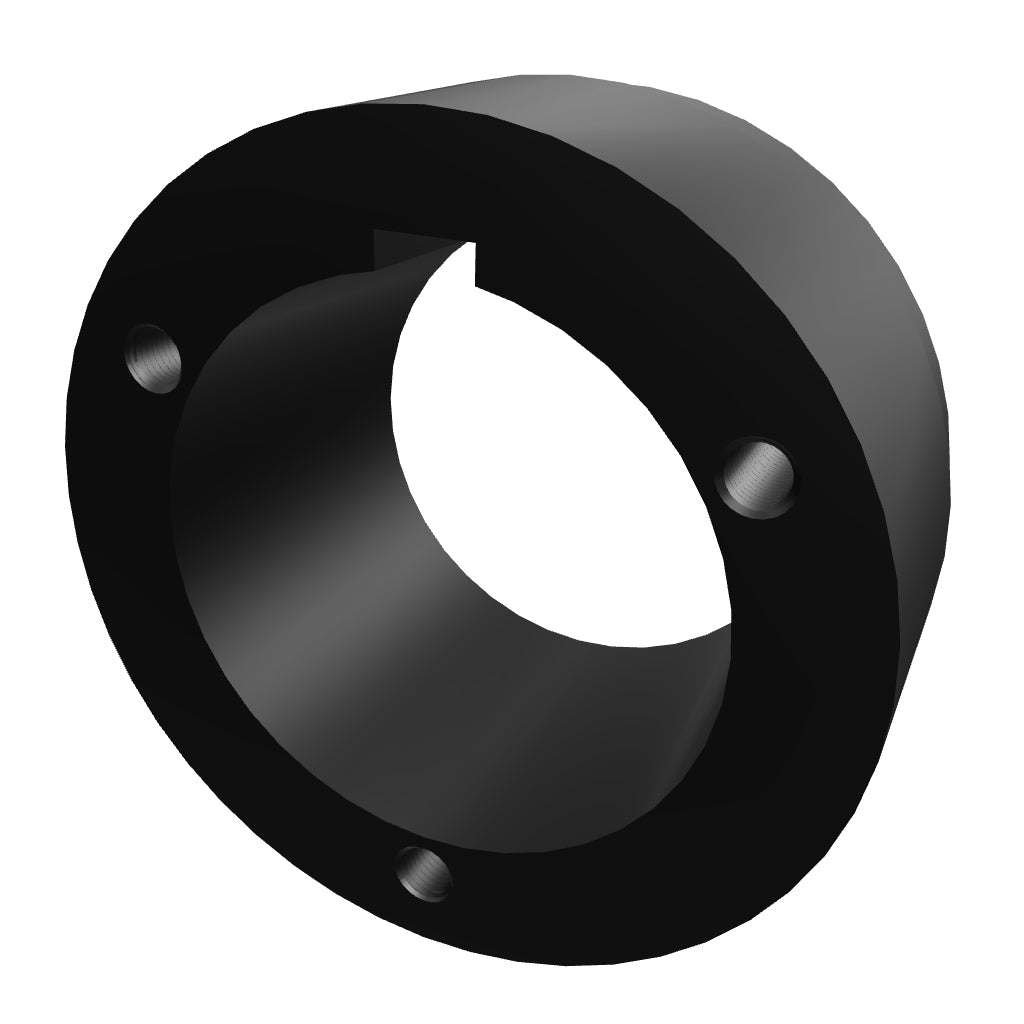

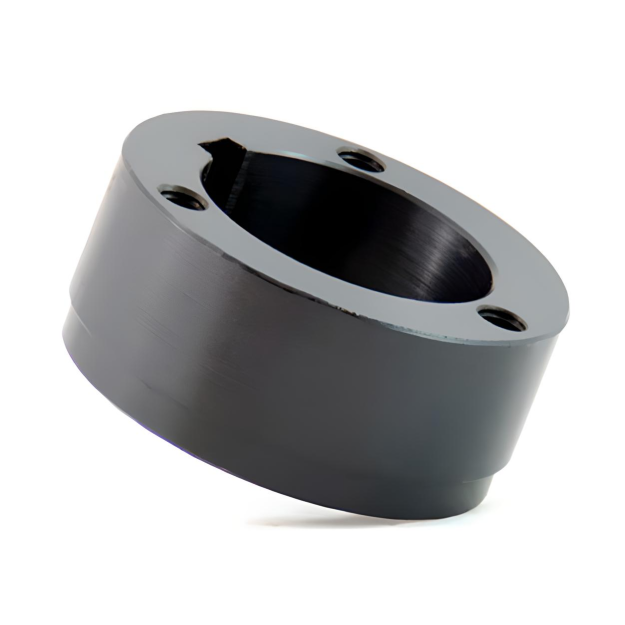

Product Details : HS1 Split Taper Weld-On Hub - Carbon Steel
-
Part No: HHS1
-
Product Type: Split Taper Weld-On Hub
-
Series: HS1
-
Compatible Bushing: S1
-
Step O.D. (D): 6-3/4"
-
A: 0.946"
-
B: 4-5/8"
-
Outside Diameter (C): 6-1/2"
-
K: 2-9/16"
-
V: 5-3/8"
-
Keyway Width (W): 3/4"
-
Length Thru Bore (X): 3-5/16"
-
a: 60°
-
d: 1-5/8"
-
No. Of Screws: 3
-
Screw Size: 1/2"-13
-
Material(s): Carbon Steel
