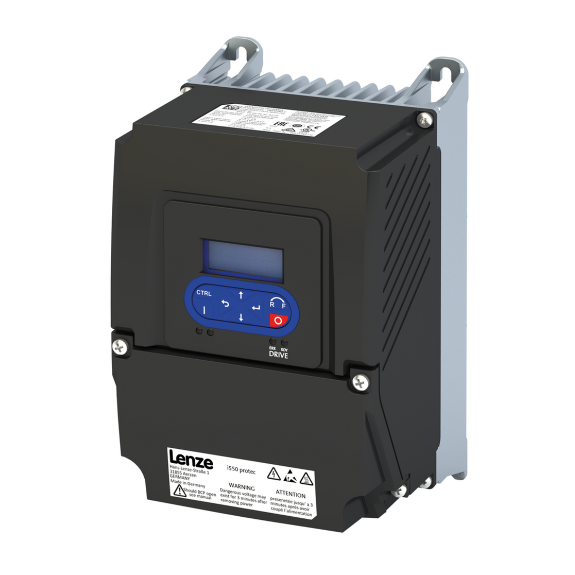

Product Details : I55AP215B00711k00S | Lenze i550 protec VFD 2HP NEMA 4X (IP66) 1PH 230/240VAC Standard I/O
-
Product Type: Lenze Drive
-
Manufacturer: Lenze
-
Equivalent: ESV152N02SFE, ESV152N02SFC
-
Series: i550 protec
-
Drive Type: Series i550 protec No Extention
-
HP: 2
-
Rated Power: 1.5 kW
-
Input Voltage: 230/240VAC
-
Input Phase: 1PH
-
Mains Frequency: 50/60 Hz
-
Output Voltage: 230/240VAC
-
Output Phase: 3PH
-
Output Current: 7A
-
Output Frequency (Max): 599 Hz
-
Degree of Protection (IP): IP66
-
Degree of Protection (NEMA): NEMA 4X
-
Enclosure: NEMA 4X (IP66)
-
Application Areas For Drives: Standard applications for VFDs
-
Protocol: Standard I/O
-
Product Extension: Keypad module, Standard I/O
-
Fieldbus: Without
-
Fieldbus Integration: Not available for this product
-
Position Feedback Function: Without feedback
-
Motor Feedback Function: Without feedback
-
Operation/Diagnostics:
• Wireless, e.g. with smartphone
• Wired, e.g. with PC
• Keypad
-
Wired Operation/Diagnostics, e.g. with a PC: Yes
-
Wireless Operation/Diagnostics, e.g. with Smartphone: Possible, additional WLAN module required
-
Encoder input: Yes, incremental encoder (HTL) via two digital inputs
-
Encoder Input Integration: Permanently integrated
-
Resolver Input: No
-
Resolver Input Integration: Not available for this product series
-
Safety Module: Without safety technology
-
Brake Chopper: Permanently integrated
-
Brake Resistor: External (accessories)
-
Memory Module:
• Drive supplied with one memory module each
• The drive cannot be operated without the memory module
• Saves software settings for the drive
-
24 V Supply For Control Unit: Yes, as an alternative to mains supply
-
Control Unit Features:
• 24 V supply for control electronics
• Encoder input
• Relay
-
Mains Choke or Mains Filter Required: No
-
Integrated RFI Filter: Yes
-
DC Rated Voltage: 310VDC
-
Number of Axes in The Drive: 1
-
Disconnect Switch: No
-
Extension Box: Without
-
Supply: Mains and/or DC
