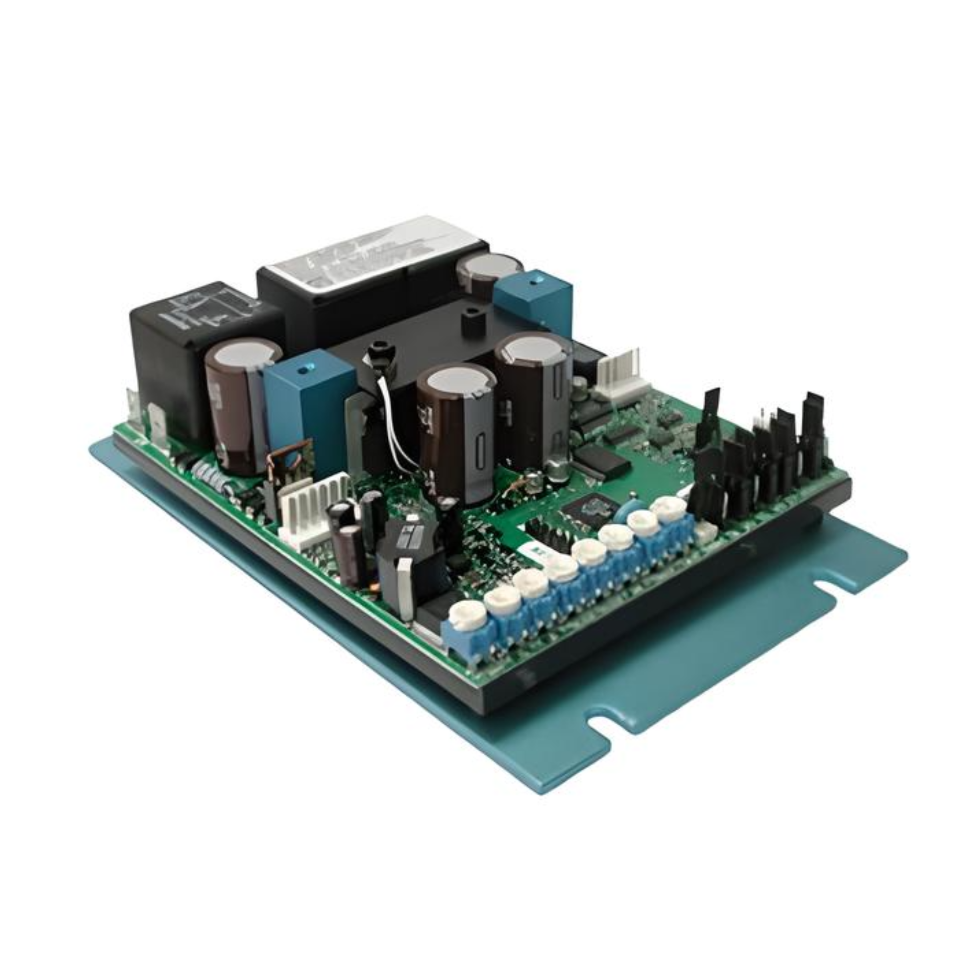

Product Details : KBBC-24M | KB Chassis SCR DC Drive 1HP, 12/24 VDC (9500)
-
Part No: 9500
-
Product Type: KB Chassis SCR DC Drive
-
Model No.: KBBC-24M
-
HP: 1
-
Input Voltage: 12/24 VDC
-
Output Voltage: 12/24 VDC
-
Output Amperage: 40
-
Frequency (Hz): 50-60
-
Enclosure NEMA: Chassis
-
Enclosure IP: IP20
-
Forward-Break-Reverse: Optional
-
Features:
• The KBBC-24M is a microprocessor controlled, DC-DC battery powered
• Designed for 12 and 24vdc Permanent Magnet and Series Wound DC motors from 1/100 to *2HP*
• Continuous rating of 40 amps and capable of peak currents of 80 amps for 7 seconds. *(2HP, 80amps DC)*
• Contains many standard features such as:
- current limit - short circuit protection
- speed potentiometer fault detector
- over-temperature sensing
- under-voltage/over-voltage protection.
• Eight trimpots are provided to tailor the low voltage DC-DC Drive to exact specifications.
• Reversing contactors provide arcless forward, stop and reverse operation.
• The controls contain a built-in heat sink that also serves as a mounting base
• Dimensions: 4.10" x 6.30" x 1.70"
For any information about products, please contact us.
*Photos for reference purposes only.
