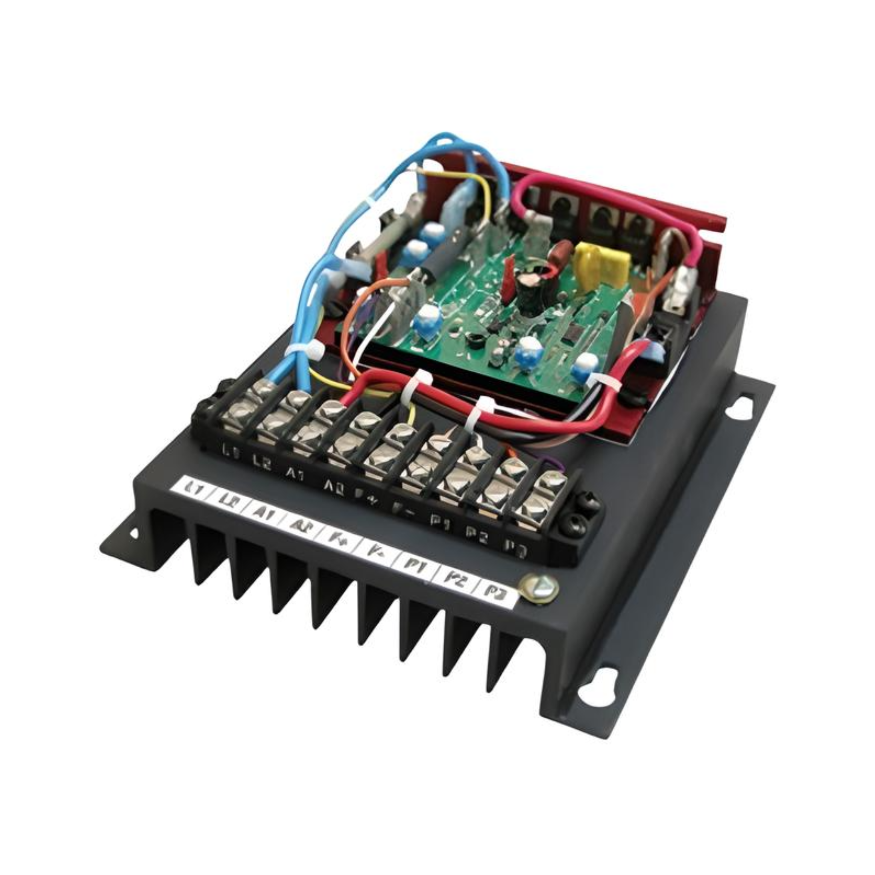

Product Details : KBCC-225R | KB Chassis SCR DC Drive 3HP, 180 VDC (9924)
-
Part No: 9924
-
Product Type: KB Chassis SCR DC Drive
-
Model No.: KBCC-225R
-
HP: 3
-
Input Phase: 1
-
Input Voltage: 230 VAC
-
Output Voltage: 180 VDC
-
Output Amperage: 16
-
Frequency (Hz): 50-60
-
Enclosure NEMA: Chassis
-
Enclosure IP: IP20
-
Forward-Break-Reverse: Optional
-
Features:
• The KBCC-225R is 208/230 VAC
• Designed for 180 VDC PM motors.
• Control motors between 1/100-3.0 HP
• Designed to provide anti-plug ''instant'' reverse, solid state dynamic braking and rapid cycling.
• They include all the features of the KBCC with features of the KB APRM.
• KB APRM eliminates contact arcing by allowing armature switching to take place only when voltage levels are near zero.
• The controls are ruggedly constructed and contain a remote 5K speed pot.
• Features include:
- AC Line fuse and Armature Fuse holder
- Auxiliary heat sink
- Barrier terminal block
• Specific functions that can be performed by the KBCC-R are Run-Brake, Forward-Brake-Reverse, Run-Stop and Forward-Reverse (instant reverse).
• Also contains auto inhibit which provides a smooth, safe start during rapid switching of the AC line
• Requires a plug-in horsepower to operate and includes and AC Line fuse and an armature holder
• Dimensions: 9.00" x 6.25" x 4.50"
• Line fuse: Required
• Resistor and armature fuse: Required
