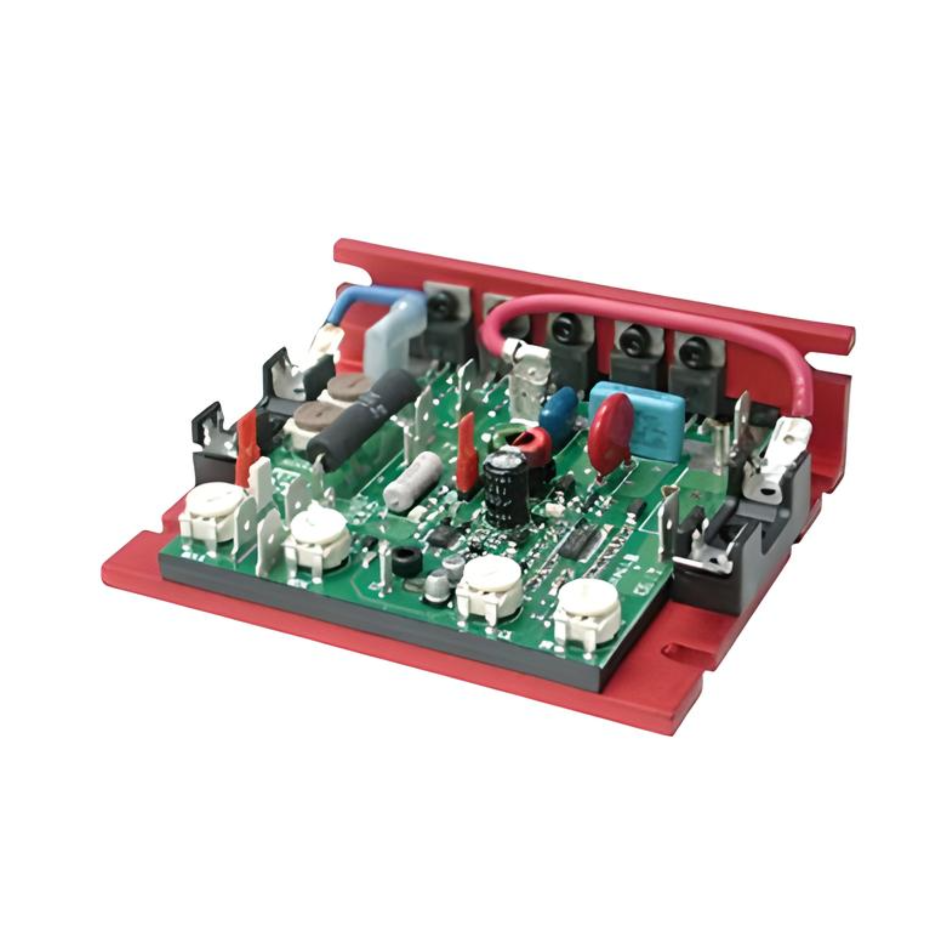

Product Details : KBMM-225D | KB Chassis SCR DC Drive 0.75/1.5HP, 90/180 VDC (9451)
-
Part No: 9451
-
Product Type: KB Chassis SCR DC Drive
-
Model No.: KBMM-225D
-
HP: 0.75/1.5
-
Input Phase: 1
-
Input Voltage: 115/230 VAC
-
Output Voltage: 90/180 VDC
-
Output Amperage: 8
-
Frequency (Hz): 50-60
-
Enclosure NEMA: Chassis
-
Enclosure IP: IP20
-
Forward-Break-Reverse: One Direction
-
Features:
• The KBMM-225D is 115-208/230 VAC
• Designed for 90 and 180 VDC PM and Shunt motors.
• Control motors between 1/100-1.5 HP (3.0 HP w/aux. Heat sink) by inserting the proper Plug-in Horsepower Resistor.
• The Auxiliary Heatsink (optional) increases the rating of the basic unit.
• Speed range is 50:1 with load regulation of 1%.
• Features include:
- AC Line fuse and Armature Fuse holder
- Auto Inhibit
- Voltage Following
- MOV transient protection
- 5K speed pot and trimpot adjustments for Min, Max, Accel, IR and CL.
• UL, CSA, CE (C-tick and CCC pending) Patented.
• Dimensions: 4.30" x 3.60" x 1.30".
• Line fuse: Required
• Resistor and armature fuse: Required
