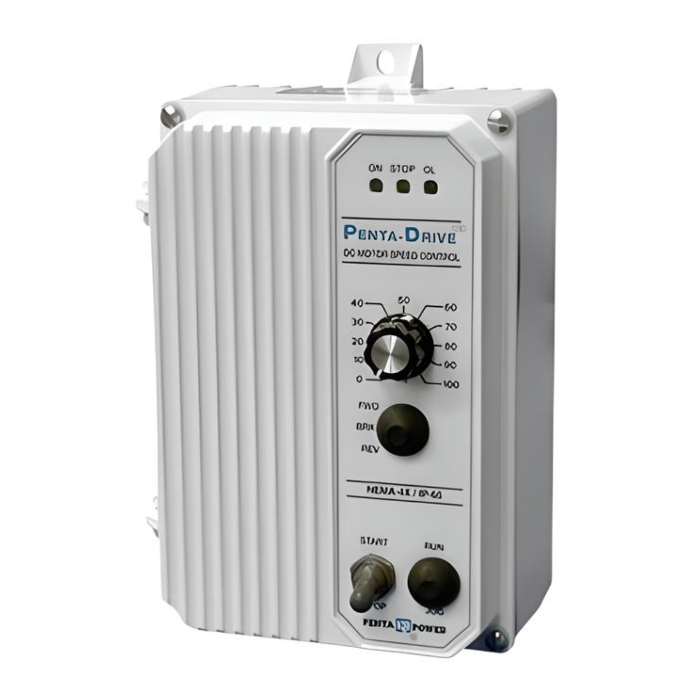

Product Details : KBPC-240D | KB NEMA 4X SCR DC Drive White 1.0/2.0HP, 90/180 VDC (9342)
-
Part No: 9342
-
Product Type: KB NEMA 4X SCR DC Drive
-
Model No.: KBPC-240D
-
Color: White
-
HP: 1.0/2.0
-
Input Phase: 1
-
Input Phase: 115/230 VAC
-
Output Voltage: 90/180 VDC
-
Output Amperage: 10.2
-
Frequency (Hz): 50-60
-
Enclosure NEMA: Nema 4X
-
Enclosure IP: IP65
-
Forward-Break-Reverse: Optional
-
Features:
• The KBPC-240D is a 115/230 Vac, enclosed NEMA-4X (IP-65), adjustable speed DC Motor Speed and variable Torque control
• Designed for environments where high humidity or watertight integrity is required
• Short Circuit and Timed Current Limit (TCL) circuitry prevents motor burnout and demagnetization of PM motors
• FDA approved white case. Approvals: UL, CSA, CE
• Selectable features are:
- Motor voltage 90/180VDC
- Motor current range .25 to 10 amps
- Input signal 0-5/0-2VDC
- Armature/tachometer feedback
- Tachometer voltages 7,25,50 V/1000 rpm
- Analog adjustments include: Min, Max, Accel, Decel, IR, CL, TCL and Jog
• Standard features are:
- Armature fusing
- Electronic start-stop and LED indicators for "Power On," "Stop" and "Overload"
• Dimensions: 5.90" x 9.50" x 5.00"
• Line fuse: supplied
• Resistor and armature fuse: Supplied
