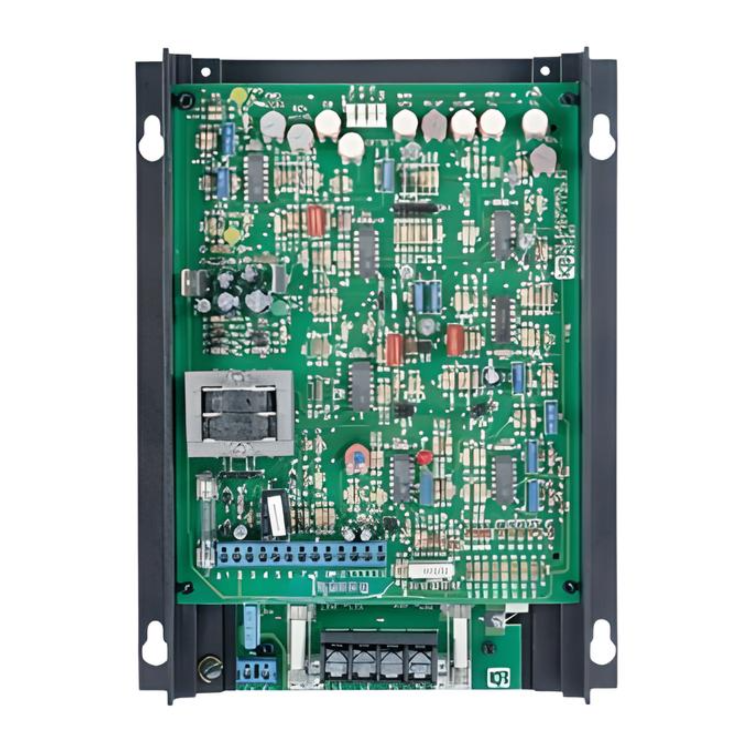

Product Details : KBRG-255 | KB Chassis SCR DC Drive 5HP, 180 VDC (8821)
-
Part No: 8821
-
Product Type: KB Chassis SCR DC Drive
-
Model No.: KBRG-255
-
HP: 5
-
Input Phase: 1
-
Input Voltage: 230 VAC
-
Output Voltage: 180 VDC
-
Output Amperage: 26
-
Frequency (Hz): 50-60
-
Enclosure NEMA: Chassis
-
Enclosure IP: IP20
-
Forward-Break-Reverse: Optional
-
Features:
• Enable Circuit
• Two (2) or Three (3) Wire Start/Stop
• Overload Shutdown with Timed CL
• External Relay Contacts
• Function Indicator Lamps: Power On, Current Limit, Forward Enable, Reverse Enable
• Protection: Fusing for AC Line, Armature and Control Circuit, MOV Transient Protection, Auto Inhibit®, Rapid Response Current Limit Circuit, Regen Overspeed Protection
For any information about products, please contact us.
*Photos for reference purposes only.
