The L-070 Lovejoy/Jaw Coupling offers reliable performance with a 1/2" bore and set screw, perfect for industrial engineering applications. The keyway and two included set screws provide secure grip and consistent torque transmission.

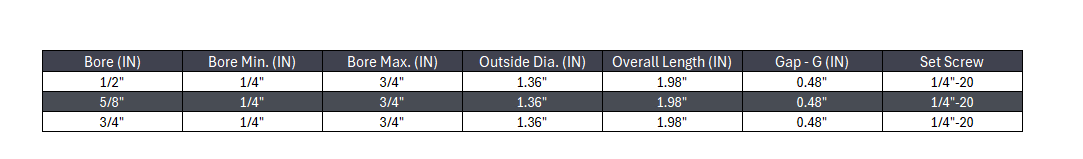

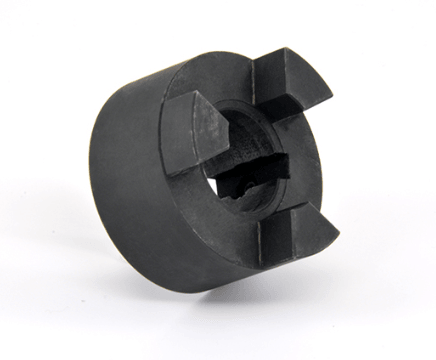

Product Details : L-070 Lovejoy/Jaw Coupling - With Keyway & Set Screw
-
Series: L-070
-
Bore Min. (IN): 1/4"
-
Bore Max. (IN): 3/4"
-

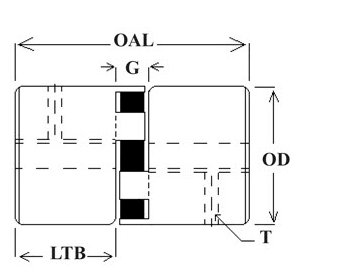

Outside Diameter (IN): 1.36"
-
Overall Length (IN): 198"
-
Gap - G (IN): 0.48"
-
Set Screw: 1/4-20
-
Weight (LBS): 0.6 lbs
-
Material(s): Carbon Steel
For any information about products, please contact us.
*Photos for reference purposes only.
