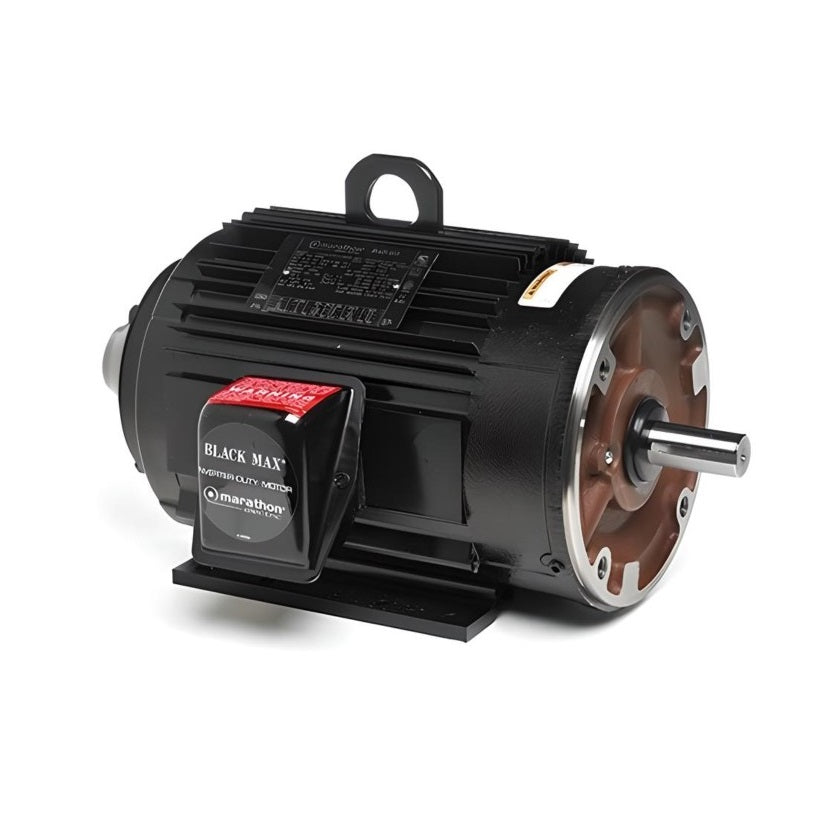

Product Details : Leeson Y535 | Black MAX Motor Vector Duty 1HP, 1800RPM, 208-230/460V, Frame 56C, TENV
-
Part No: Y535
-
Product Type: Black MAX Motor
-
Categories: Inverter(Vector) Duty
-
Brand: Leeson/Marathon
-
Frame: 56C
-
Enclosure: TENV
-
Horsepower (HP): 1
-
Poles: 4
-
RPM: 1400 to 1800
-
Voltage: 208-230/460V
-
Phase: 3
-
Number Of Speeds: 1
-
Frequency (Hz): 60
-
Amps: 3.0/1.5
-
Features:
• INVERTER (VECTOR) DUTY: BLACK MAX® MOTORS
• 1000:1 CONSTANT TORQUE TENV, THREE PHASE MOTORS
• MAX GUARD® Class F insulation system
• Constant torque operation from 0 to base speed on vector drive
• Constant horsepower operation up to twice base RPM
• Continuous duty at 40ºC ambient
• Optimized for operation with IGBT inverter (NEMA® Design A)
• Normally closed thermostats (one per phase, Class F)
• Removable rigid base, as noted
• Ball bearings
• Field reversible to F2 (except as noted)
• Encoder and brake provisions included on opposite drive end (maximum 10 lb-ft brake, see modifications and/or accessory kits sections)
• UL recognized, CSA certified, and CE mark
• Three year warranty
• Model 056H17T5302
• APPLICATIONS: Designed for inverter or vector applications where up to a 1000:1 constant torque speed range is required. Typical uses include: material handling, machine tools, conveyors, crane and hoist, metal processing, test stands, pumps compressors, textile processing, and other industrial machinery installed in dusty or dirty environments.
