Product Details : M5 Air Pilot Valve M5, 5/2 Single Acting Pressure 2 bar
-
Part No: 805.52.11.1
-
Product Type: Air Pilot Valve
-
Series: 800
-
Valve Code: 805
-
Fluid: Filtered air
-
Pilot Ports Size: M5
-
Working Ports size: M5
-
Orifice Size (mm): 2.5
-
Exhaust Port Size: M5
-
Valve Type: Spool Valve
-
Actuation: Pneumatic
-
Return Actuation: Spring
-
Actuation Type: Single Acting
-
Valve Diagram: 5/2
-
Minimum Pilot Pressure: 2 bar
-
Max Working Pressure: 10 bar
-
Operating Temperature °C: -5°C +70°C
-
Flow rate at 6 bar with Δp=1 (Nl/min): 160
-
Body Material: Aluminum
-
Operators: Aluminum
-
Spools: Aluminum
-
Seals: HNBR
-
Pistons: Aluminum
-
Springs: Stainless steel
For any information about products, please contact us.

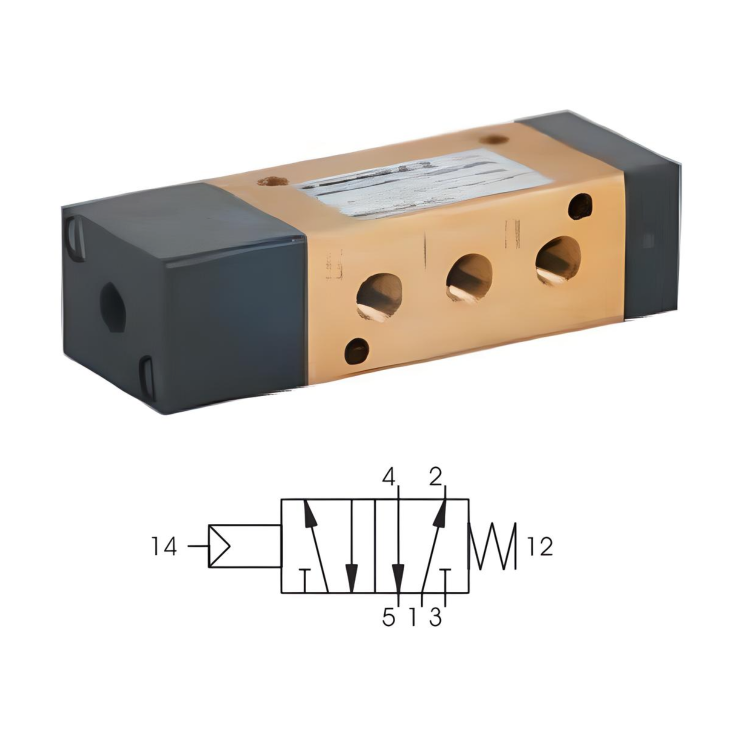

*Photos for reference purposes only.
