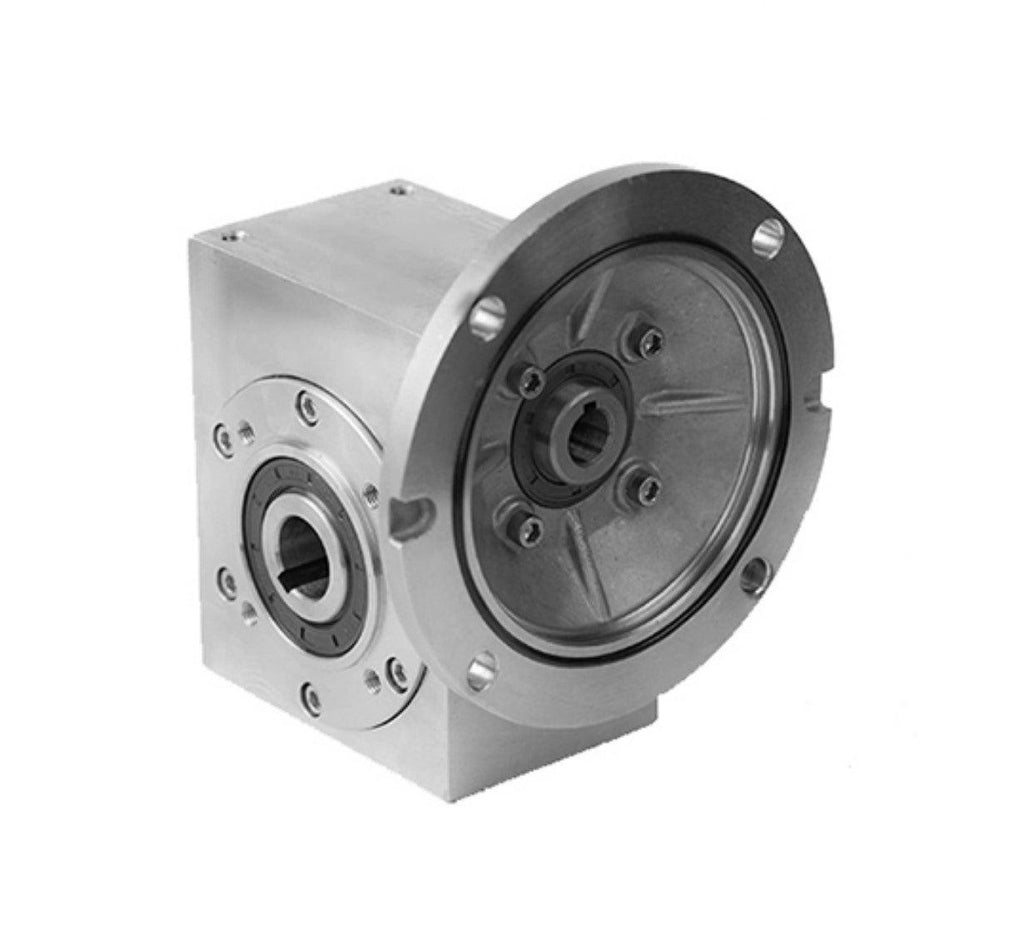

Stainless Steel Gearbox 56C 25:1 Size 50 Bore 1" - Forces Inc

Roll over image to zoom in Click on image to zoom

Max Motion | Stainless Steel Gearbox 56C 25:1 Size 50 Output Bore 1"

Name: Max Motion | Stainless Steel Gearbox 56C 25:1 Size 50 Output Bore 1"
Brand: Forces Inc
SKU: MRS50-25-56C
Price: 1224.97 CAD
Availability: InStock

Forces IncSKU: MRS50-25-56C

Input Bore: 5/8"

Size: 50

Ratio: 25:1

Variant

Price:

$1,224.97 CAD

Stock:

In stock

Quantity:

Share this product

Product Details : Stainless Steel Gearbox 56C 25:1 Size 50 Bore 1"

Part No: MRS50-25-56C
Size: 50
NEMA Frame: 56C
Input Bore: 5/8"
Output Bore: 1"
Ratio: 25:1
Output RPM: 70
Output Torque (IN.Lbs): 619
Max Input @1750 RPM: 0.90
Max Overhung Load (Lbs): 551
Material: 304 Stainless Steel
Warranty: 2 Years
Weight (Lbs): 19

Product Accessories :

Size 50 304SS Single Output Shaft 1"
Size 50 304SS Double Output Shaft 1"
Size 50 304SS Safety Cover W/ Stainless Hardware
Size 50 304SS Torque Arm Assembly

*Photos for reference purposes only.
