Product Details : Miniature Circuit Breaker 5A, C Curve 240Vac/60Vdc 1P | B1N1C5
-
Part No: B1N1C5
-
Product Type: Miniature Circuit Breaker
-
Brand: NOARK®
-
No. Of Poles: 1
-
Tripping Curve: C Curve (5-10 in.)
-
Rated Current (Amps): 5A
-
Standard Ratings: 10 kA at 480Y/277Vac and 10 kA at 125Vdc
-
Voltage (V): 240Vac/60Vdc
-
Termination Type: Box Lug
-
Min/Max Wire AWG Size: 18-4
-
Limited Warranty: 5 Years
-
Features:
• Breakers mount on standard 35 mm DIN rail
• Can be used in UL 1077 or CSA C22.2 No.235 applications
• Field installable shunt trip and auxiliary switch
• Available with provisions for ring tongue terminals

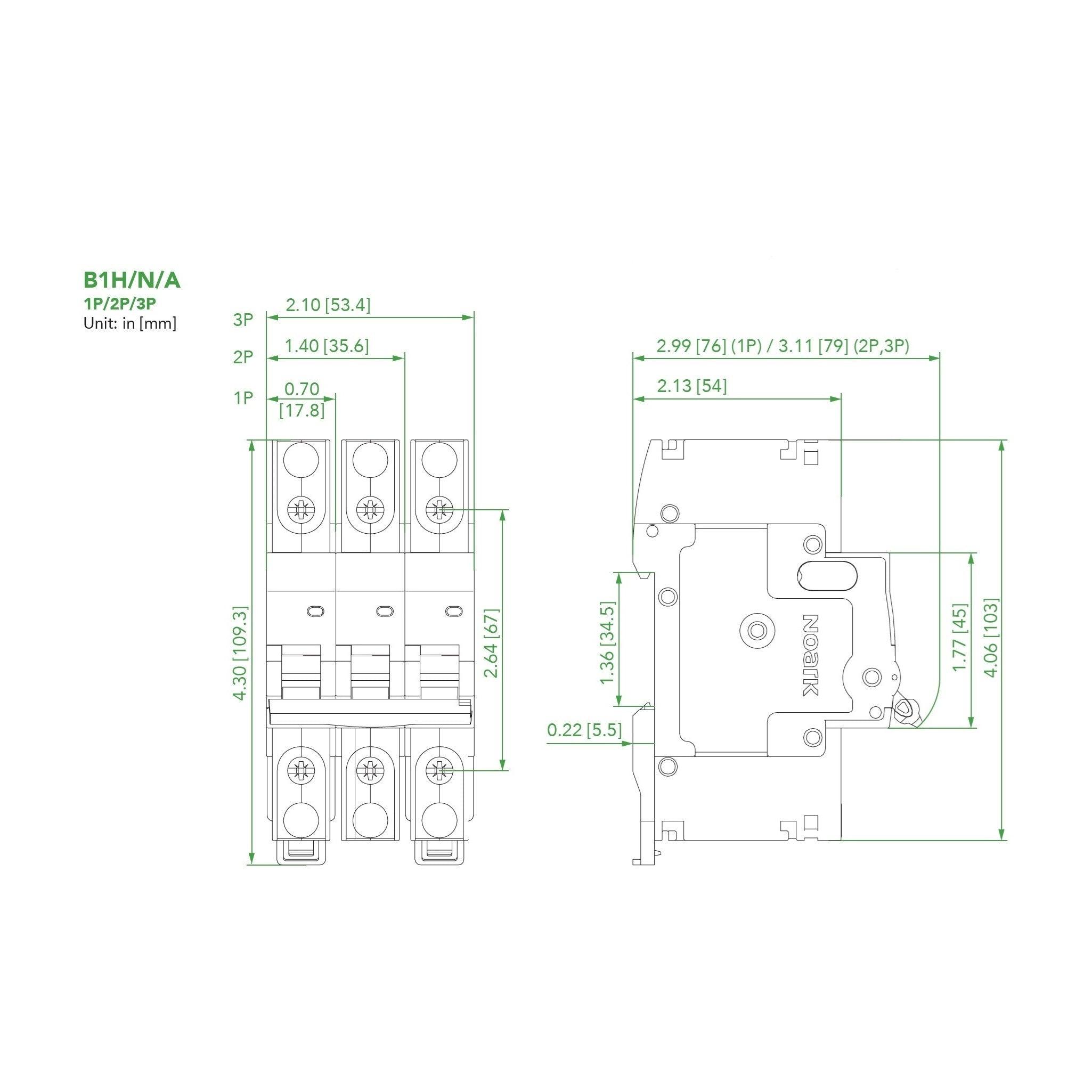

• Module width of only 0.71 in (18 mm) per pole
• Contact position indicator (red/green)
• Provision for pad locking the toggle in ON or OFF position
-
Certifications:
• UL489 file number E355392 standard for connection terminals which allows the user to apply field wiring directly to the breaker.
• UL listed to UL489 and CSA Standard C22.2 No. 5 for branch circuit protection.
• IEC 60947-2 standard for industrial applications of circuit protection.
• CCC China Compulsory Certification
