Product Details : MTD3 Open End Timing Belt 10mm Wide - Steel Cord | L3M-10URS
-
Part No: L3M-10URS
-
Product Type: Polyurethane Open End Timing Belt
-
Length: Sold Per Foot (ft)
-

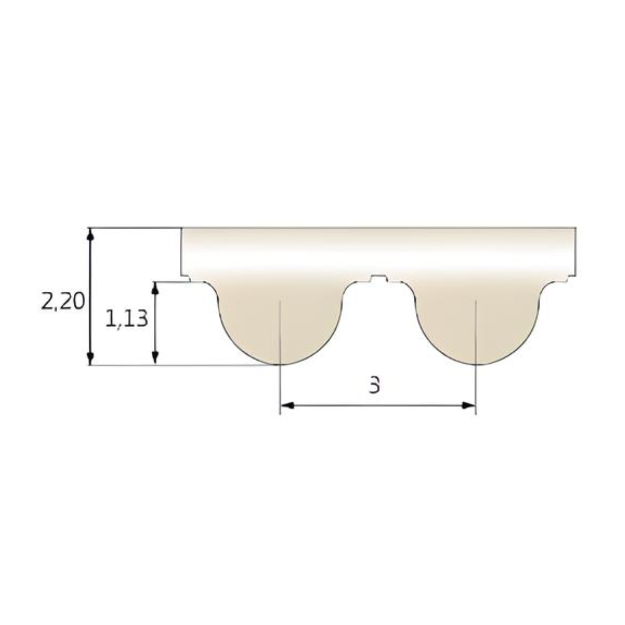

Belt Profile: MTD3
-
Belt Pitch: 3mm
-
Belt Width: 10mm
-
Tooth Height: 1.13mm
-
Belt Thickness: 2.20mm
-
Tooth Cover: None
-
Back Cover: None
-
Max Traction Load (N) : 410
-
Breaking Strength (N): 1640
-
Elongation at MTL (mm/m) : 4
-
Standard Width Tolerance: +/- 0.3mm
-
Standard Length Tolerance: +/- 0.5mm
-
Standard Thickness Tolerance: +/- 0.15mm
-
ISO: ISO 13050
-
Material(s): White Polyurethane Thermoplastic 92 ShA
-
Material Cord: Zinked Steel (S and Z torsion)
Belts offered in custom widths. For more information and pricing about these custom products please contact us.
For any information about products, please contact us.
*Photos for reference purposes only.
