Description

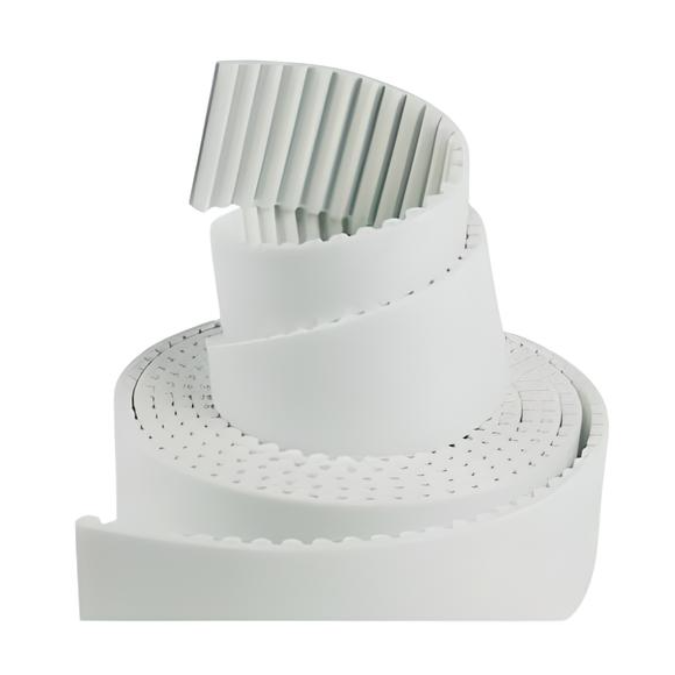

Product Details : MTD5 Open End Timing Belt 25mm Wide - Kevlar Cord | L5M-25URKF
- Part No: L5M-25URKF
- Product Type: Polyurethane Open End Timing Belt
- Length: Sold Per Foot (ft)

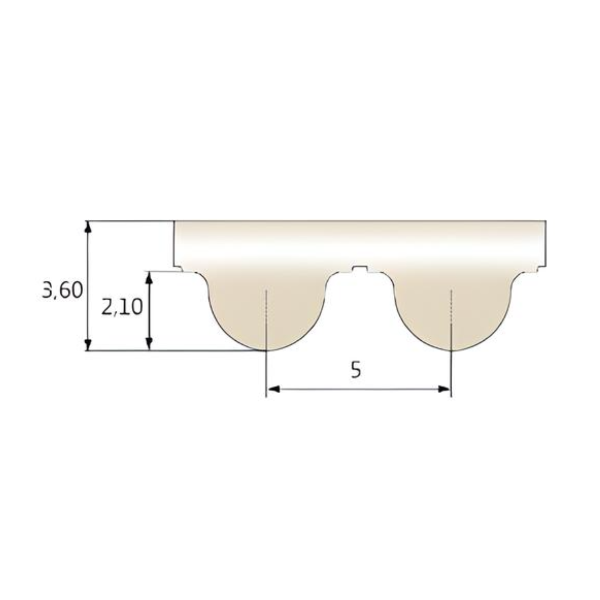

- Belt Profile: MTD5
- Belt Pitch: 5mm
- Belt Width: 25mm
- Tooth Height: 2.1mm
- Belt Thickness: 3.6mm
- Tooth Cover: Transparent FDA compound
- Back Cover: Transparent FDA compound
- Max Traction Load (N) : 2225
- Breaking Strength (N): 8900
- Elongation at MTL (mm/m) : 8
- Standard Width Tolerance: +/- 0.5mm
- Standard Length Tolerance: +/- 0.8mm
- Standard Thickness Tolerance: +/- 0.2mm
- ISO: ISO 13050
- Material(s): White Polyurethane Thermoplastic 92 ShA
- Material Cord: Kevlar
Belts offered in custom widths. For more information and pricing about these custom products please contact us.
For any information about products, please contact us.
*Photos for reference purposes only.
