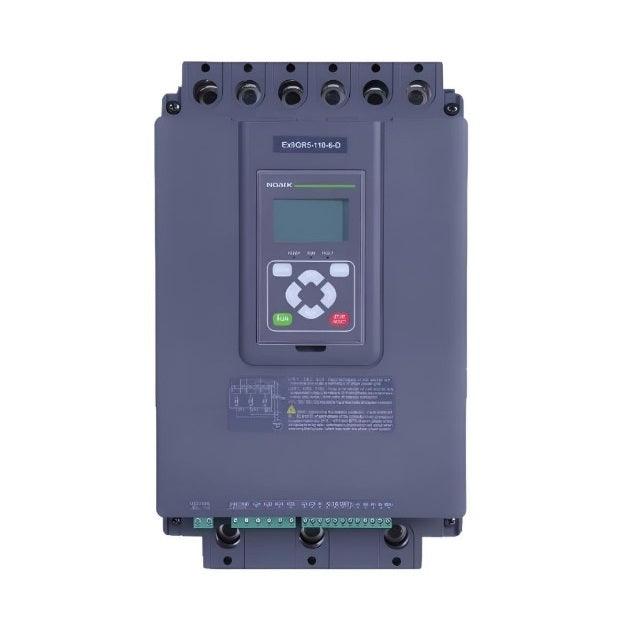

NOARK® Soft Starter 90A, 200-690Vac Non-Bypassed | Ex9QR50906D

Product Details : NOARK® Soft Starter 90A, 200-690Vac Non-Bypassed | Ex9QR50906D

• Part No: Ex9QR50906D
• Product Type: NOARK® Soft Starter
• Brand: NOARK®
• Series: Ex9QR5
• Rated Current (Amps): 90A
• Voltage (V): 200-690Vac Main Circuit Voltage
• Inbuilt Bypass Contactor: No
• Cooling System: Fan Cooled
• Overload Class: 10A, 10, 20 and 37
• Features:
  •Programmable current modes: normal current, normal voltage, enhanced current, enhanced voltage, linear torque, square torque and frequency division mode
  •Multi-protection functions: input & output phase loss, three phase unbalance, operation overload, main circuit undervoltage & overvoltage, Multiple & Prolonged starting time, starting current limit timeout and load locked short circuit
  •Automatic light-load energy saving
  •Low-speed forward and reverse rotation function
  •Wide input frequency ranges from 35Hz to 60Hz
  •Braking and stopping function
  •Built-in RS-485 communication interface and standard Modbus protocol
  •Easy operability: LCD display
• Certifications:
  •UL-US-2312728-0


For any information about products, please contact us.

*Photos for reference purposes only.
