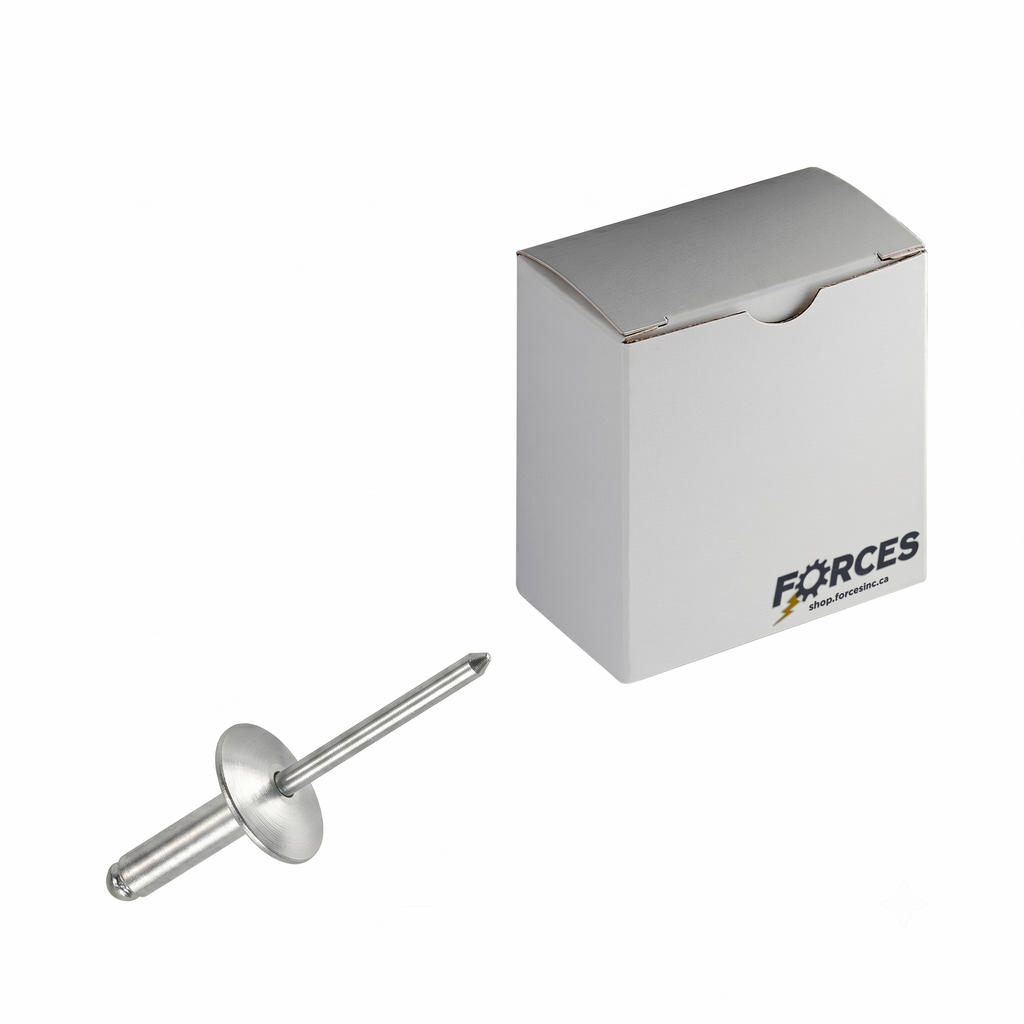

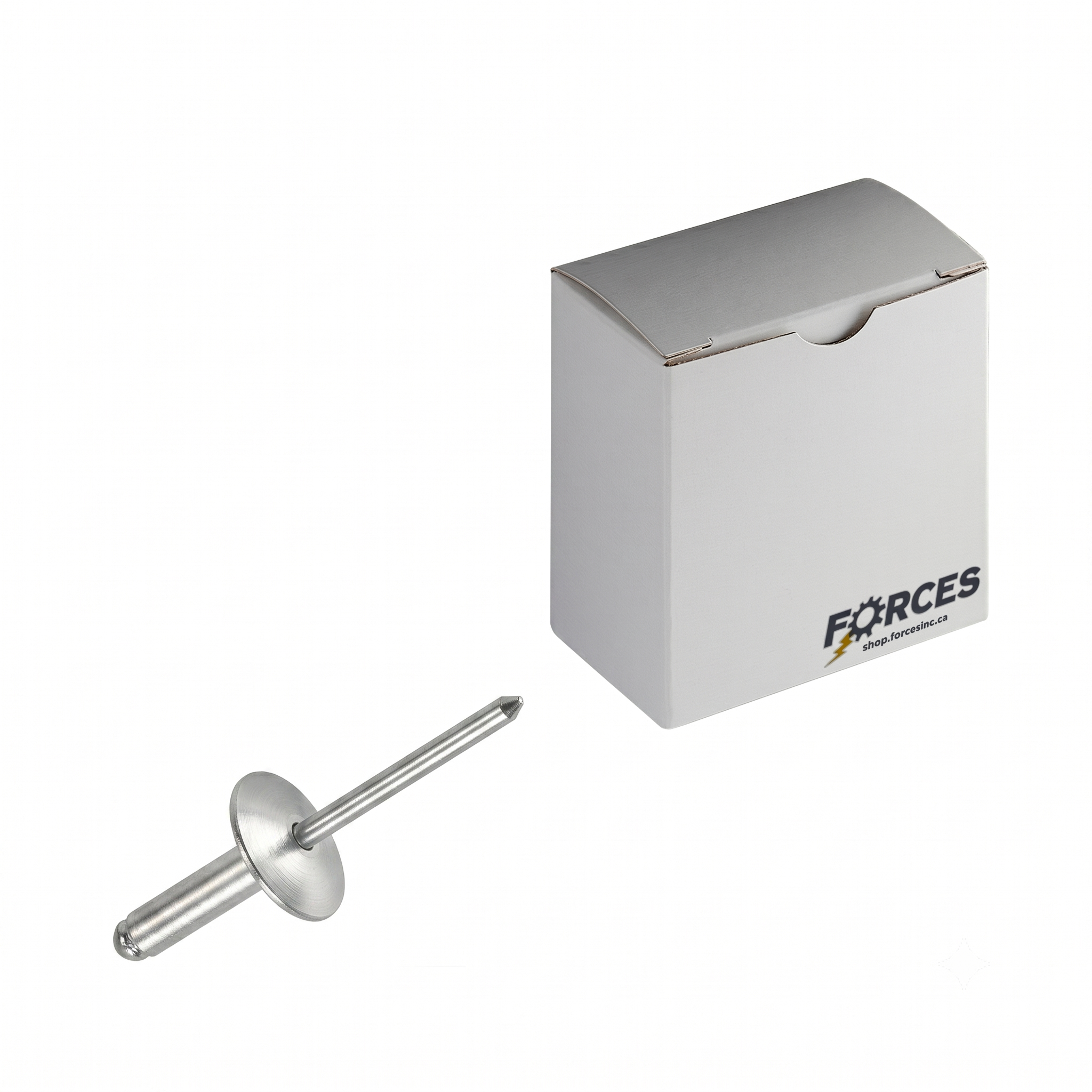

Product Details : Open End Large Dome Head Blind Rivet 1/8" x 0.313"-0.375" (#46) - Aluminum / Aluminum
-
Product Type: Blind Rivet
-
Head Type: Large Dome Head
-
Style: Opened End
-
Diameter: 1/8"
-
Grip Range: 0.313"-0.375"
-
Rivet No.: #46
-
Head Diameter: 0.375"
-
Rivet Body Length: 0.525"
-
Recommended Drill Size: #30
-
Recommended Hole Size: 0.133"
-
Body Material(s): 5052 Aluminum
-
Mandrel Material(s): Aluminum
-
Steel Grade: Grade 11
-
Minimum Ultimate Shear Strength (lbs): 120
-
Minimum Ultimate Tensile Strength (lbs): 150
-
Standards and Certifications: IFI 114
For any information about products, please contact us.
*Photos for reference purposes only.
